Mencom PCGA-13.5 PG 13.5 0.394 - 0.551" (10-14 mm) Right Angle Cable Gland

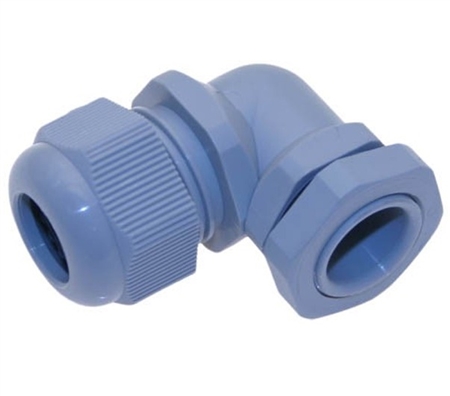

PCGA-13.5 PG 13.5 Gray Right Angle Strain Relief Fitting

Alternative Views:

Price: $4.66

Note: Delivery: 2-5 Business Days
MFG P/N: PCGA-13.5
MFG: Mencom
Weight (lbs): 0.02

Quantity in Stock :284

Availability: In Stock
Product Code: PCGA-13.5

Qty:

Description

Mencom PCGA-13.5 gray plastic right angle cable gland has PG 13.5 thread. Accommodates 0.394 - 0.551" (10-14 mm) cable. This cord grip is made to be liquid tight and creates a protective seal for cables that pass through enclosures. Sold Individually. Includes locknut. Rated IP 68 for dust and water protection, which is similar to NEMA 6P. Submersible up to 5 atmospheres of pressure.

Specfications

Cable Gland Material- Polyamide
Grommet- Neoprene
Color- Gray
Mounting Thread- PG 13.5
Gland Upper Range- 0.551" (14mm)
Gland Lower Range- 0.394" (10mm)
Mounting Hole Clearance- 20.7 (0.815)
Nut- Yes
Ingress Protection- IP 68 (Total protection from dust and prolonged immersion in water)

Mencom PCGA-13.5 PG 13.5 Right Angle Cord Grip
