Mencom

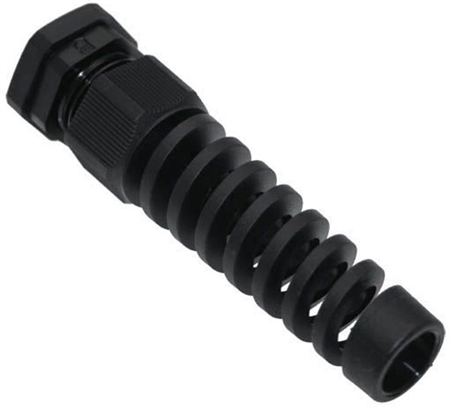

PCG-13.5-BS black plastic cable gland has PG 13.5 thread. Accommodates .236 - .472" (6 - 12 mm) cable. This cord grip is designed to be liquid tight and can be used with ILME enclosures and hoods. The PCG13.5BS can be found in many different applications and industries, as it creates a protective seal for cables that pass through enclosures. Sold Individually. Includes locknut. Rated IP 68 for protection when encountering dirt and moisture. UL & CUL Recognized.
- Gives strain relief for cable connections
- Tight seal keeps out dirt and moisture
- IP 68-5 BAR rating, which is similar to NEMA 6P
- Withstands up to 5 atmospheres of pressure under water
- No O-rings are necessary to reach an IP 68 rated seal against the enclosure
- Intended for use with round cables, do not use with flat or ribbon cables.
Mencom PG 13.5 Flex Cable Gland with Standard Insert PCG-13.5-BS
Cable Gland Material- Polyamide Color- Black Mounting Hole Clearance- 20.7 mm (.815")
Mounting Thread- PG 13.5 Gland Upper Range- 0.472"
Gland Lower Range- 0.236"
Nut- Yes
Ingress Protection- IP 68
Approvals- UL & CUL Recognized
|
