Mencom PCG-M12 M12 0.156 - 0.273" (3 - 6.5 mm) Cable Gland

PCG-M12 M12 Gray Strain Relief Fitting
Mencom PCG-M12 M12 0.156 - 0.273" (3 - 6.5 mm) Cable Gland

Alternative Views:
Price: $1.54
Note: Delivery: 2-5 Business Days
MFG P/N: PCG-M12
MFG: Mencom
Weight (lbs): 0.0042

Quantity in Stock :465


Availability: In Stock
Product Code: PCG-M12
Qty:


Description Technical Specs

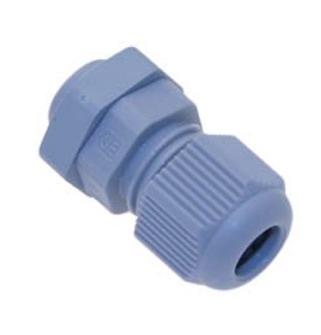

Mencom PCG-M12 gray plastic cable gland has M12 x 1.5 thread. Accommodates 0.156 - 0.273" (3 - 6.5 mm) cable. This strain relief fitting, also known as a cord grip, is made to be liquid tight and is compatible with ILME hoods. The PCG-M12 can be used in many different applications and industries, as it creates a protective seal for cables that pass through enclosures. Sold Individually. Includes locknut. Rated IP 68 for dust and water protection. Temperature Range: -20 C to 100 C. UL & CUL Recognized.

  • Provides strain relief for cable connections
  • Tight seal keeps out dirt and moisture
  • IP 68-5 BAR rating, similar to the NEMA 6P rating given to enclosures
  • Submersion under water for up to 5 atmospheres of pressure
  • Grommet creates seal around cable

Mencom Plastic Strain Relief Cord Grip with M12 Thread PCG-M12
Additional Product Information
An O-ring is not needed to reach an IP 68 rated seal against the enclosure. Crush ribs under the hex nut create the seal. Features a wide clamping range. The IP 68 rating indicates that the cable gland is completely protected from dust, and can withstand submersion in water. It has a polyamide construction, which is known for its durability, so it will be able to handle many environmental conditions.
