Mencom MEC-4FP-5M B-Coded M12 Cordset, 4 Pole, Female Straight, 5 M

Mencom Euro-AC Cordset - MEC-4FP-5M
Mencom MEC-4FP-5M B-Coded M12 Cordset, 4 Pole, Female Straight, 5 M



Alternative Views:


Price: $32.05
MFG P/N: MEC-4FP-5M
MFG: Mencom
Weight (lbs): 0.4

Quantity in Stock :54


Availability:
In stock
Product Code: MEC-4FP-5M
Qty:

Description

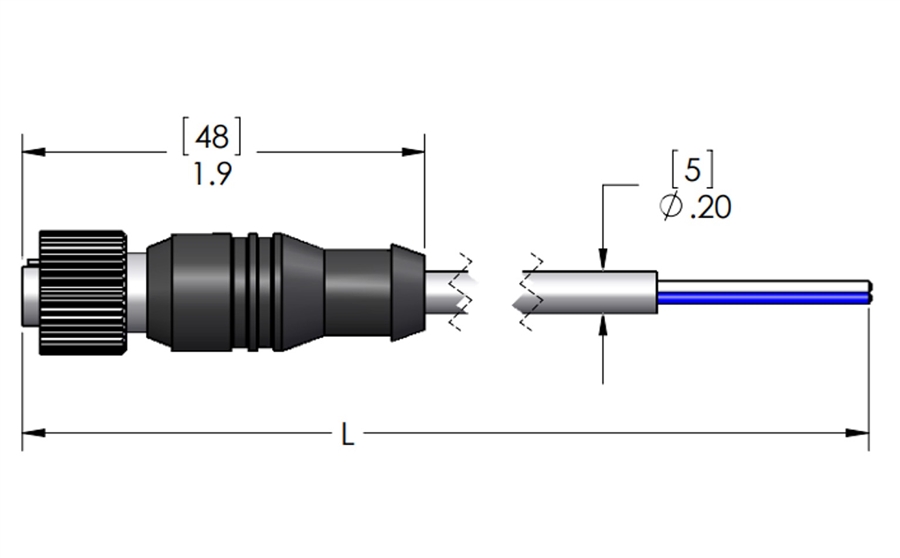

The Mencom MEC-4FP-5M Euro AC (M12) female straight cordset features a 4 pin insert, 22 AWG wire and 5 meters of cable. The body is black PVC with gold plated copper alloy contacts. The gray cable is rated at 300V and 105 C. Rated IP 69. Operating temperature -40 C to 105 C (-40 F to 221 F). Mencom MEC B-Coded cordsets use an M12 coupling nut, have a single reverse keyway, and provide plug and play solutions for various applications.

Pin #1 - Brown
Pin #2 - Blue
Pin #3 - Black
Pin #4 - Green/Yellow
Pin #5 - Not Used

Specifications

  • Body- Black PVC
  • Insulator- Polyamide
  • Contacts- Gold Plated Copper Alloy
  • Coupling Nut- Nickel Plated Brass
  • Cable- 22/4 AWM 2661 Gray PVC Jacket
  • Rated Voltage- 300 V
  • Rated Current- 4 Amps
  • Wire Gauge- 22
  • Pin Count- 4
  • Cable Length- 5 meters (16.4 ft)
  • Cable O.D.- 0.2
  • Ingress Protection- IP 69 (Total protection from dust as well as high pressure and high temperature water jets from any direction)
  • Orientation Head- Female Straight
  • Coupling Thread- Female
  • Mating Thread / Type Head- M12
  • Nut- No
  • Approvals- UL & CUL Listed

Mencom MEC-4FP-5M 5 Meter B-Coded M12 Molded Cable
