Mencom DB09-MFP-2M Panel Interface Connector Cable, 9 Pin D-Sub, 2 M

Panel Interface Connector Cable, 9 Pin D-Sub, 2 Meter
Mencom DB09-MFP-2M Panel Interface Connector Cable, 9 Pin D-Sub, 2 Meter



Alternative Views:


Price: $28.97
Note: Please call or email [email protected] for alternatives
MFG P/N: DB09-MFP-2M
MFG: Mencom
Weight (lbs): 0.5

Quantity in Stock :(Out of Stock)


Availability:
Out of Stock
Product Code: DB09-MFP-2M
Qty:


Description

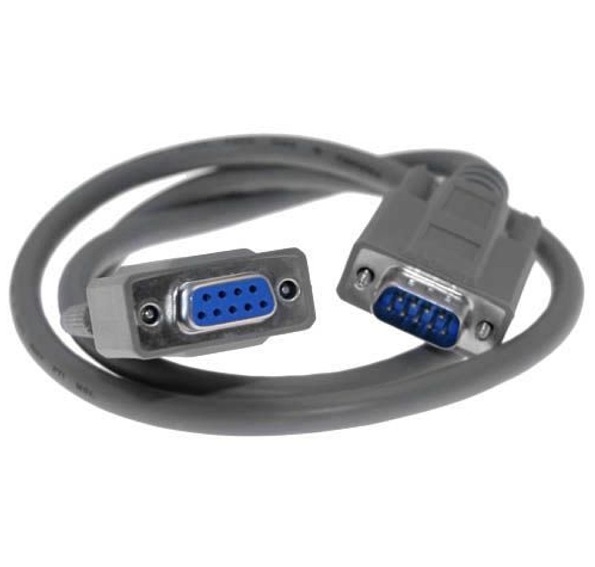

The Mencom DB09-MFP-2M male to female 9 pin D-Sub connector cable has a 2 meter length with a gray PVC jacket. It has 24 AWG wire with shielding on last four 20 AWG drain wires. It is fully wired straight through with the foil mylar shield and 20 AWG drain wire connected to a metal shell.

Pin #1- Black
Pin #2- Brown
Pin #3- Red
Pin #4- Orange
Pin #5- Yellow
Pin #6- Green
Pin #7- Blue
Pin #8- Violet
Pin #9- White

Specifications

  • Number of Poles- 9
  • Wire Gauge- 24 AWG, last 4 are 20 AWG
  • Cable Jacket Material- Gray PVC
  • Thumb Screw Material- Nickel Plated Brass
  • Shielding- Yes
  • Length- 2 Meters (6.56 Ft)

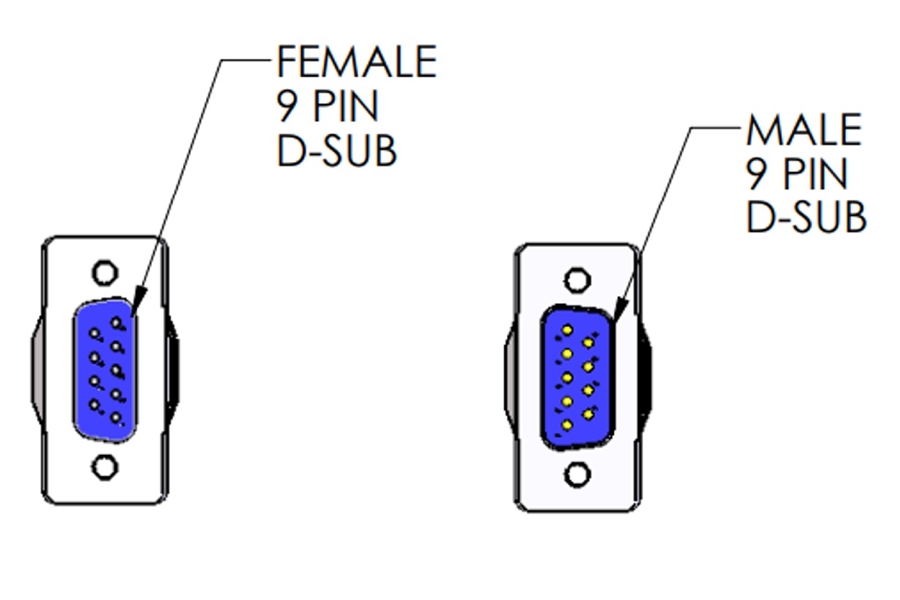

  • Orientation Head 1- Female D-Sub Connector
  • Orientation Head 2- Male D-Sub Connector

2 Meter 9 Pin D-Subminiature Connector Extension Cable
