Mencom CRC-M12 M12 to M16 Nickel Plated Brass Enlarger

Mencom M12 to M16 Nickel Plated Brass Enlarger

Alternative Views:

Price: $2.83

Note: Delivery: 2-5 Business Days
MFG P/N: CRC-M12
MFG: Mencom
Weight (lbs): 0.024

Quantity in Stock :145

Availability: In Stock
Product Code: CRC-M12

Qty:

Description

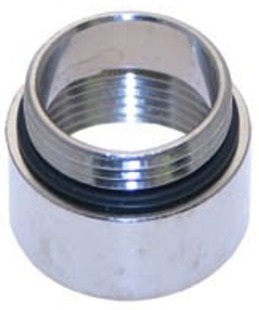

Mencom CRC-M12 nickel plated brass enlarger converts holes that fit M12 x 1.5 thread to a female M16 x 1.5 thread. Thread enlargers let the user switch to the larger female size of the same thread type. Used with Mencom cable glands, which are compatible with ILME hoods.

Specifications

Thread Enlarger Material- Nickel Plated Brass
O-Ring Material- NBR
Male Mounting Thread- M12
Female Thread- M16
Outer Diameter- 18 mm
Thread Length- 5 mm
Height- 16 mm
