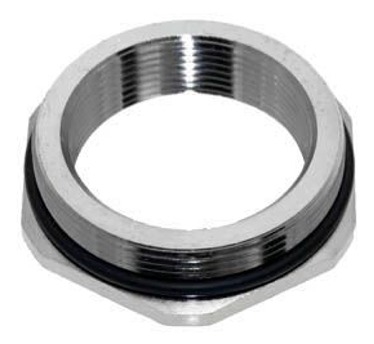

Mencom CEC-M32X M50 to M32 Nickel Plated Brass Reducer

Mencom M50 to M32 Nickel Plated Brass Reducer

Alternative Views:

Price: $21.12

Note: Delivery: 2-5 Business Days
MFG P/N: CEC-M32X
MFG: Mencom
Weight (lbs): 0.3

Quantity in Stock :66

Availability: In Stock
Product Code: CEC-M32X

Qty:

Description

Mencom CEC-M32X nickel plated brass reducer converts holes that fit M50 thread to a female M32 thread. Thread reducers let the user switch to the smaller female size of the same thread type. Used with Mencom cable glands, which are compatible with ILME hoods.

Specifications

Thread reducer Material- Nickel Plated Brass
O-Ring Material- Buna-N
Male Mounting Thread- M50 x 1.5
Female Thread- M32 x 1.5
Outer Width- 55 mm
Thread Length- 13 mm
Height- 22 mm
