Mencom PCG-1.25 1-1/4" NPT 0.866 - 1.26" (22 - 32 mm) Cable Gland

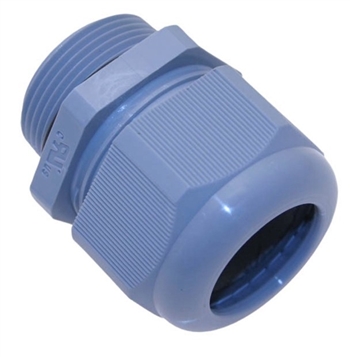

PCG-1.25 1-1/4" NPT Gray Strain Relief Fitting
Mencom PCG-1.25 1-1/4" NPT 0.866 - 1.26" (22 - 32 mm) Cable Gland



Alternative Views:


Price: $17.66
MFG P/N: PCG-1.25
MFG: Mencom
Weight (lbs): 0.081

Quantity in Stock :67


Availability:
In Stock
Product Code: PCG-1.25
Qty:


Description Technical Specs


Mencom PCG-1.25 gray plastic cable gland has 1-1/4" NPT thread. Accommodates 0.866" - 1.26" (22 - 32 mm) cable. Also known as a strain relief fitting or cord grip, it is made to be liquid tight and can be used with ILME hoods and enclosures. The PCG-1.25 is ideal for a number of different applications and industries, and creates a protective seal for cables that pass through enclosures. Sold Individually. Rated IP 68 for protection against dirt and water. Temperature Range: -20 C to 100 C. UL & CUL Recognized.

  • Supplies strain relief for cables
  • Features a tight seal to keep out air and moisture
  • IP 68-5 BAR rating, which is similar to NEMA 6P
  • Can be submerged under water for up to 5 atmospheres of pressure
  • Grommet creates the seal around cable

Mencom 1.25" NPT Size Liquid Tight Fitting PCG-1.25

Additional Product Information
The O-Ring is included and provides an IP 68 rated seal against the enclosure.
Designed for round cables, not made for use with flat or ribbon cables.
Wide clamping range
