Mencom MACB-6MFP-2M 1/2-20 Cordset, 6 Pole, Male/Female Straight, 2 M, Shielded

Mencom Shielded Micro AC Cordset - MACB-6MFP-2M
Mencom MACB-6MFP-2M 1/2-20 Cordset, 6 Pole, Male/Female Straight, 2 M, Shielded



Price: $65.62
MFG P/N: MACB-6MFP-2M
MFG: Mencom
Weight (lbs): 0.34

Quantity in Stock :2


Availability:
In Stock
Product Code: MACB-6MFP-2M
Qty:


Description

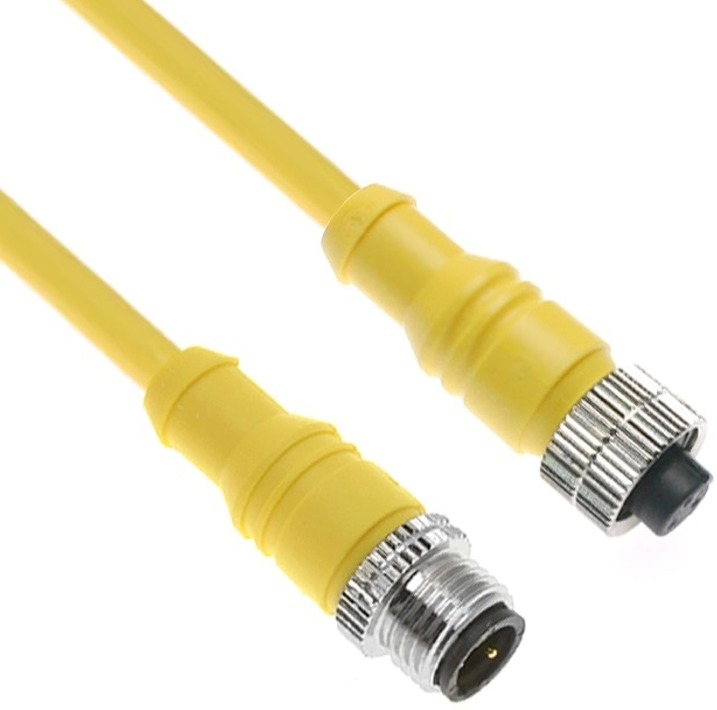

The Mencom MACB-6MFP-2M Micro AC (1/2-20) male / female straight cordset with braided shield has a 6 pin insert, 22 AWG wire and 2 meters of cable. The body is yellow PVC with gold plated copper alloy contacts. The cable is rated at 300V and 105 C. Rated IP 69. Operating temperature -40 C to 105 C (-40 F to 221 F). Mencom MAC cordsets use an 1/2-20 coupling nut and have a C-coded dual keyway. While comparable in appearance, they have a different color code than MDC series M12 connectors.

Pin #1 - Red/White
Pin #2 - Red
Pin #3 - Green/Yellow
Pin #4 - Red/Yellow
Pin #5 - Red/Black
Pin #6 - Red/Blue

Specifications

  • Body- Yellow PVC
  • Insert- Polyamide
  • Contacts- Gold Plated Copper Alloy
  • Coupling Nut- Nickel Plated Brass
  • Cable- 22/6 Yellow PVC Jacket w/ Braided Shield
  • Rated Voltage- 300 V
  • Rated Current- 4 Amps
  • Wire Gauge- 22
  • Pin Count- 6
  • Cable Length- 2 meter (6.56 ft)
  • Cable O.D.- 0.24
  • Ingress Protection- IP 69 (Total protection from dust as well as high pressure and high temperature water jets from any direction)
  • Orientation Head 1- Male Straight
  • Orientation Head 2- Female Straight
  • Coupling Thread 1- Male
  • Coupling Thread 2- Female
  • Mating Thread / Type Head- 1/2-20UN2
  • Nut- No
  • Shielding- Yes
  • Approvals- UL & CUL Listed

MACB-6MFP-2M Shielded 6 Pin Extension 1/2-20 Molded Cable
