Menics ATESR-15-R 56 mm 1 Stack Andon Tower Light w/ Selector Switch Control Box, Red, 110V, 15Ft Cable

Menics ATESR-15-R 1 Tier Tower Light, Red
Menics ATESR-15-R 56 mm 1 Stack Andon Tower Light w/ Selector Switch Control Box, Red, 110V, 15Ft Cable

Alternative Views:
Price: $159.72
Note: Please call or email [email protected] for alternatives
MFG P/N: ATESR-15-R
MFG: Menics
Weight (lbs): 3.5

Quantity in Stock :(Out of Stock)


Availability: Out of Stock
Product Code: ATESR-15-R
Qty:

Description

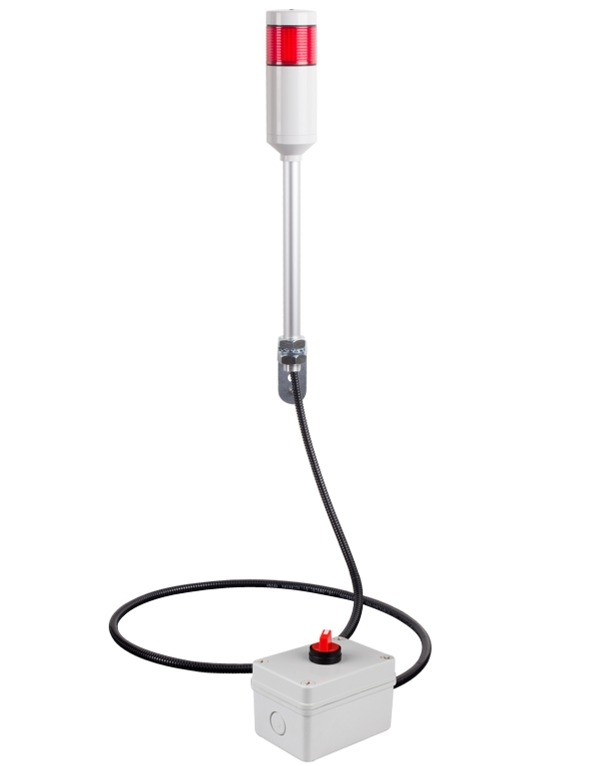

The Menics ATESR-15-R 1 stack LED Andon tower light has a 56mm diameter and is rated for 110V. It has a red lens, with flashing light. This signal light comes ready for use with a 9.45" pole attached and 2 position Deca selector switch in a Boxco control box, connected by a 15 ft cable. Made for wall mounting. Includes 6 foot power cord.

Specifications

  • Light Operation- Flashing
  • Power Supply- 110V AC
  • Lens Colors- Red
  • Number of LED Tiers- 1 Stack
  • Buzzer- None

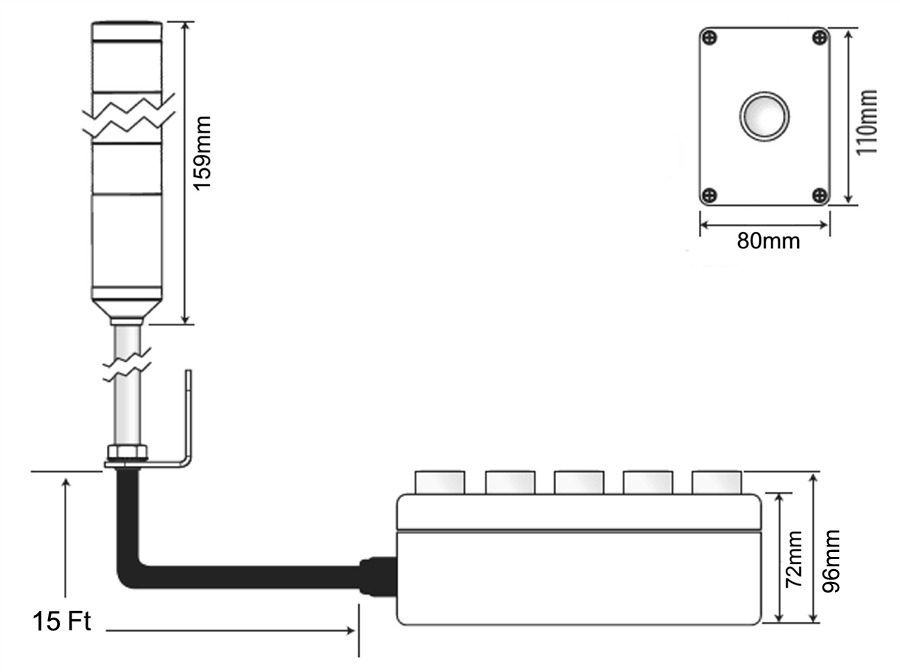

  • Dimensions (Tower Light Only)- 159mm Height x 56mm Diameter (6.26" x 2.2")
  • Pole Length- 240mm (9.45")
  • Cable Length- 15 feet
  • Dimensions (Control Box)- 110mm Height x 80mm Width x 72mm Depth (4.33" x 3.15" x 2.83")
  • Current- 0.017 Amps
  • Switching- Selector Switch Control Box
  • Flash Rate- 80 times per minute
  • Vibration- 0.75mm @10~55Hz
  • Ambient Temperature- -15 C to 40 C (5 F to 104 F)
  • Storage Temperature- -20 C to 70 C (-4 F to 158 F)
  • Ambient Humidity- 45-85% Relative Humidity
