Menics ATEP-RYG 56 mm 3 Stack Andon Tower Light w/ Push Button Control Box, Red Yellow Green, 110V

Menics ATEP-RYG 3 Tier Tower Light, Red Yellow Green
Menics ATEP-RYG 3 Stack Tower Light w/ Push Button Control Box, Red Yellow Green, 110V



Alternative Views:


Price: $176.00
Note: Please call or email [email protected] for alternatives
MFG P/N: ATEP-RYG
MFG: Menics
Weight (lbs): 2.6

Quantity in Stock :(Out of Stock)


Availability:
Out of Stock
Product Code: ATEP-RYG
Qty:

Description

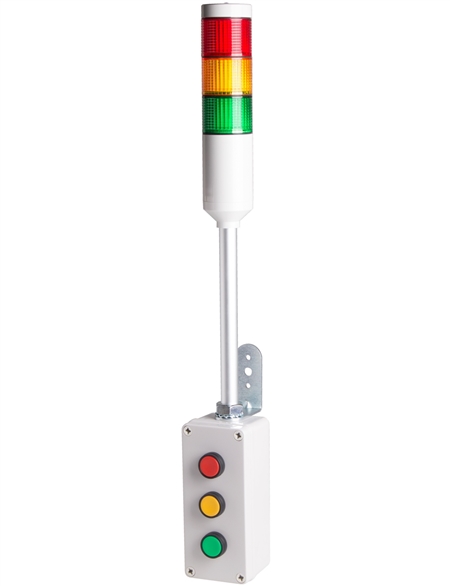

The Menics ATEP-RYG 3 stack LED Andon tower light has a 56mm diameter and is rated for 110V. It has red, yellow, & green lenses, with steady & flashing lights. The signal light itself comes ready to use with a 9.45" pole and Deca push buttons in a Boxco control box. Made for wall mounting. Includes 6 foot power cord. Rated IP 65.

Specifications

  • Light Operation- Red: Flashing / Yellow & Green: Steady
  • Power Supply- 110V AC
  • Lens Colors- Red Yellow Green
  • Number of LED Tiers- 3 Stack
  • Buzzer- None
  • Dimensions (Tower Light Only)- 239mm Height x 56mm Diameter (9.4" x 2.2")
  • Pole Length- 240mm (9.45")
  • Dimensions (Control Box)- 180mm Height x 80mm Width x 72mm Depth (7" x 3.15" x 2.83")
  • Current- Red & Yellow: 0.017 Amps / Green: 0.022 Amps
  • Switching- Push Button Control Box
  • Flash Rate- 80 times per minute
  • Vibration- 3mm @10~55Hz
  • Ambient Temperature- -15 C to 40 C (5 F to 104 F)
  • Storage Temperature- -40 C to 70 C (-40 F to 158 F)
  • Ambient Humidity- 45-85% Relative Humidity
  • Recommended Wire Size- 1007 UL / 22 AWG
  • IP Protection- IP 65 (Totally protected from dust and water jets from any direction), NEMA 4x
  • Approvals- UL, CE, RoHS

Menics ATEP-RYG 3 Tier Red Yellow Green Andon Tower Light
