Macromatic LCP2J100 120V Dual Probe Liquid Level Relay, Pump Down, 4.7K to 100K

Macromatic LCP2J100 120V Liquid Level Relay, Pump Down
Macromatic LCP2J100 120V Dual Probe Liquid Level Relay, Pump Down, 4.7K to 100K



Alternative Views:


Price: $87.22
Note: Ships in 5-10 Business Days
MFG P/N: LCP2J100
MFG: Macromatic
Weight (lbs): 0.3



Availability:
In Stock
Product Code: LCP2J100
Qty:

Description

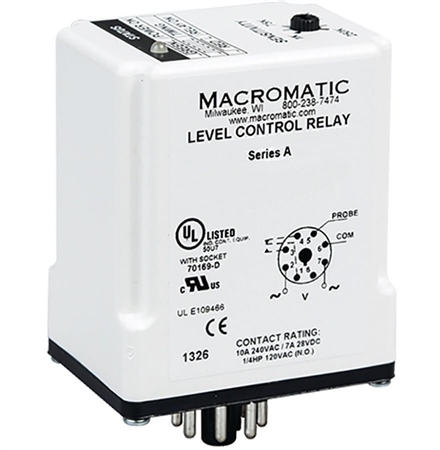

The Macromatic LCP2J100 is a dual probe pump down liquid level control relay. This 8 Pin plug-in relay has an input voltage of 120V AC. It monitors the level of conductive liquid, (such as tap water, chemical solution, seawater, etc.) and compares the resistance between the probes. Used to monitor liquid levels in the tank for pumps, solenoids, or valves. Pilot duty rating. Sensitivity is adjustable. Can cross to products from GEMS (Warrick). Note: Image is for reference, actual product may differ

Specifications

  • Relay Function- Dual Probe Pump Down Liquid Level Control Relay
  • Input Voltage- 120V AC
  • Output- 10A SPDT
  • Sensitivity Range- 4.7K to 100K Ohms
  • Voltage Tolerance- AC Operation: +10 / -15% of nominal at 50/60 Hz
  • Load- 2 VA
  • Probe Voltage- 5V DC Pulsed
  • Operating Temperature- -28 C to 65 C (-18 F to 149 F)
  • Storage Temperature- -40 C to 85 C (-40 F to 185 F)
  • Output Contacts- 10A @ 240V AC / 7A @ 28V DC, 1/4HP @ 120V AC (N.O.)
  • Life- Mechanical: 10,000,000 operations, Full Load: 100,000 operations
  • Response Time- Pick Up: 1 Second, Drop Out: 1 Second
  • Dimensions- 2.4" Height x 1.7" Width x 3.2" Depth
  • Approvals- UL and CUL recognized, UL & CUL listed (with Socket)

When the level of conductive liquid hits the high probe, the relay is energized and the LED is red. It stays energized until the level of liquid drops under the low probe. The LED then turns green and the unit de-energizes until the liquid hits the high probe again.

Macromatic LCP Series Installation Instructions

LCP2J100 Macromatic 120V AC Liquid Level Control Plug-In Relay
