Macromatic LCP2C100 120V Dual Probe Liquid Level Relay, Pump Up, 4.7K to 100K

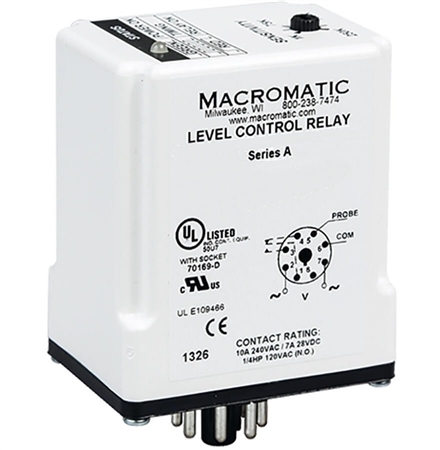

Macromatic LCP2C100 120V Liquid Level Relay, Pump Up
Macromatic LCP2C100 120V Dual Probe Liquid Level Relay, Pump Up, 4.7K to 100K

Alternative Views:

Our Price: $71.97
MFG: Macromatic
Weight (lbs): 0.3

Delivery Time: 5-10 Business Days
Product Code: LCP2C100


The Macromatic LCP2C100 is a dual probe pump up liquid level control relay. This 8 Pin plug-in relay has an input voltage of 120V AC. It monitors the level of conductive liquid, (such as tap water, chemical solution, seawater, etc.) and compares the resistance between the probes. Used to monitor liquid levels in the tank for pumps, solenoids, or valves. Pilot duty rating. Sensitivity is adjustable. Can cross to products from SSAC and NCC.


  • Relay Function- Dual Probe Pump Up Liquid Level Control Relay
  • Input Voltage- 120V AC
  • Output- 10A SPDT
  • Sensitivity Range- 4.7K to 100K Ohms
  • Voltage Tolerance- AC Operation: +10 / -15% of nominal at 50/60 Hz
  • Load- 2 VA
  • Probe Voltage- 5V DC Pulsed
  • Operating Temperature- -28 C to 65 C (-18 F to 149 F)
  • Storage Temperature- -40 C to 85 C (-40 F to 185 F)
  • Output Contacts- 10A @ 240V AC / 7A @ 28V DC, 1/4HP @ 120V AC (N.O.)
  • Life- Mechanical: 10,000,000 operations, Full Load: 100,000 operations
  • Response Time- Pick Up: 1 Second, Drop Out: 1 Second
  • Dimensions- 2.4" Height x 1.7" Width x 3.2" Depth
  • Approvals- UL and CUL recognized, UL & CUL listed (with Socket)

Macromatic LCP Series Installation Instructions

LCP2C100 Macromatic 120V AC Pump Up Relay

Additional Product Information

When the level of conductive liquid drops below the low probe, the relay is energized and the LED is red. It stays energized until the level of liquid hits the high probe. The LED then turns green and the unit de-energizes until the liquid goes back under the low probe.

Liquid Level Relay Connection Diagram
