Overview
The
Jorc 1000 is a TEC-11 timer controlled condensate drain valve designed for automatic moisture removal in compressed air systems. It features a brass valve housing, LED timer indication, adjustable timing, and a direct acting valve for dependable condensate discharge.230V AC1/8" NPT inlet & outlet2mm

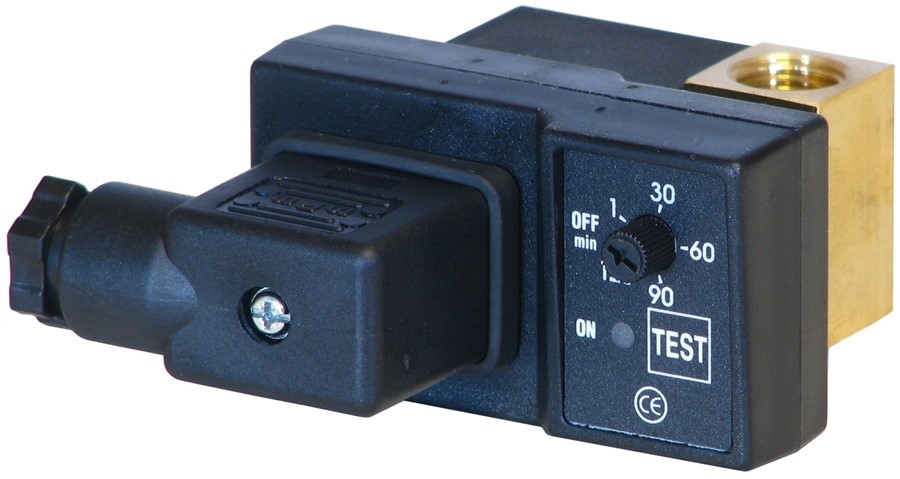

The Jorc 1000 230V AC TEC-11 timer controlled condensate drain valve features a brass valve housing and has an LED indicator, an adjustable timer, a direct acting valve, and a 2mm opening. It has a low profile with a vertical flow, and is ideal for compressed air filters or dental compressors. Comes with 7 ft power cord
💧 Reliable Automatic Condensate Removal
Timed Drain Control: Adjustable OFF cycles help remove condensate from compressed air systems without constant manual draining.
Serviceable Brass Valve: Brass valve housing and FPM seals support dependable operation in demanding air system environments.
System Compatibility: Rated for compressed air systems up to 230 PSI with DIN 43650 Form B.
Key Features
- 230V AC
- 1/8" NPT inlet & outlet
- In-line, compact design
- Made to mount under filter housing
- Will not air lock when in use
- TEST feature
✅ Why Choose This Jorc Timer Drain?
This condensate drain combines
automatic timed operation, a serviceable brass valve, and compact installation for reliable moisture removal in compressed air filters, dryers, and compressor systems.
Applications
The Jorc 1000 is designed for condensate removal in compressed air equipment, including:
- Compressed air filters
- Dental compressors
- Point-of-use filter housings
- Small compressed air systems
- Moisture removal in air lines
⚠️ Important Installation Info
Depressurize system before installation or service.
Confirm voltage before wiring to prevent damage to the timer or valve.
Use the TEST feature after installation to verify discharge operation.
Performance Benefits
- Helps prevent moisture buildup in compressed air equipment
- Automatic timed discharge reduces manual maintenance
- Direct acting valve design supports reliable condensate release
- LED indication makes timer status easy to verify
Maintenance Friendly Design
The serviceable valve design helps reduce downtime and makes routine compressed air system maintenance easier.
