Overview
The

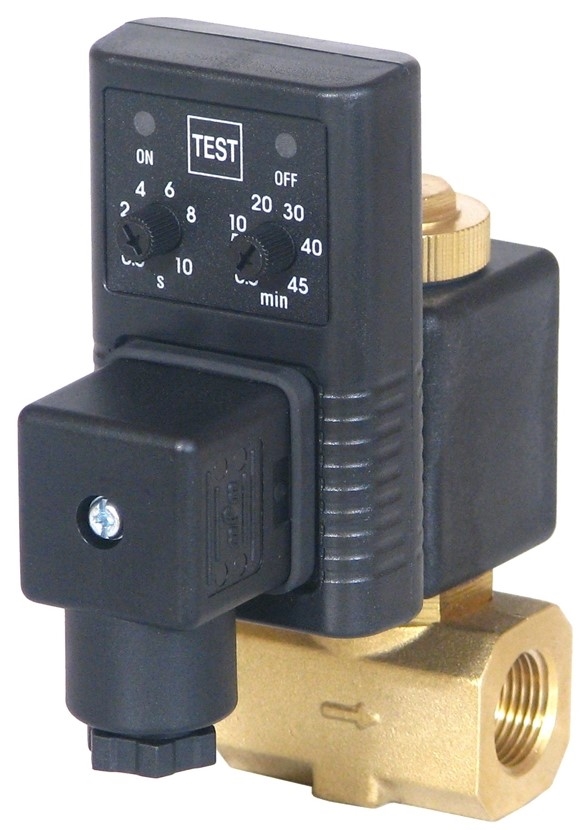

Jorc 2303 is a EAD timer-controlled condensate drain with a brass valve housing, LED indicators, adjustable timers, a direct acting solenoid valve, and a 4mm (0.16") opening.4mm Valve Opening1/2" NPT0–230 PSI
Use this drain on refrigerated air dryers, air compressors, air filters, and compressed air systems that need reliable condensate removal in high-flow or steady-load applications. Includes 7 ft power cord.
💧 Adjustable Condensate Drain Control
Timer Range: 0.5 - 10 sec / 0.5 - 45 min.
System Rating: Rated for 0-230 PSI (0-16 bar).
Status Check: LED indication and TEST function simplify setup, troubleshooting, and routine inspection.
Key Features
- 1/2" NPT inlet & outlet: standard NPT drain connection
- Serviceable valve: supports maintenance instead of full drain replacement
- Will not air lock during use: helps maintain reliable condensate discharge
- Brass valve housing: durable construction for compressed air service
- 7 ft power cord: ready for field installation
✅ Why Choose This Timer Drain?
This EAD drain gives maintenance teams a simple way to control condensate discharge using adjustable on/off cycles, a serviceable valve, and clear LED status feedback.
Applications
The Jorc 2303 is built for condensate removal in compressed air equipment and steady-load drain points:
- Refrigerated air dryers
- Air compressors
- Air filters and separator drains
- Compressed air systems up to 230 PSI
- High-flow applications with consistent condensate loads
⚠️ Important Installation Info
Match the voltage before wiring – this model is rated for .
Stay within pressure limits – rated for 0–230 PSI (0–16 bar).
Use within the listed ambient temperature range and follow the Jorc EAD installation manual.
Performance Benefits
- Adjustable timing helps match discharge frequency to condensate volume
- Direct acting 2/2 way valve supports reliable operation
- Serviceable valve design reduces replacement waste
- LED indicators make on/off status easy to verify
- No air-lock operation supports consistent condensate removal
📚 Downloads & Resources
Installation Instructions
→ Jorc EAD Timer Drain Installation Manual
Technical Details
→ Use the specification tables on this page to confirm voltage, connection size, pressure rating, and timer range.
🔧 Maintenance-Friendly Design
The brass valve housing, FPM seals, serviceable valve, and TEST function make this EAD drain practical for routine compressed air system maintenance.
