HTP DIN 43650 Form A Circuit Module, 115V LED, MOV Surge Suppression

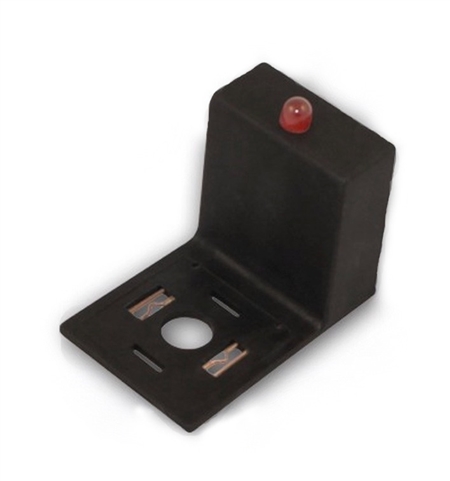

HTP DIN Valve Connector 43650 Form A Sandwich Adapter
HTP DIN 43650 Form A Circuit Module, 115V LED, MOV Surge Suppression

Alternative Views:
Price: $9.43
Note: Delivery: 2-5 Business Days
MFG P/N: AG1N02VL2
MFG: HTP
Weight (lbs): 0.15

Quantity in Stock :95


Availability: In Stock
Product Code: ASA110
Qty:


Description

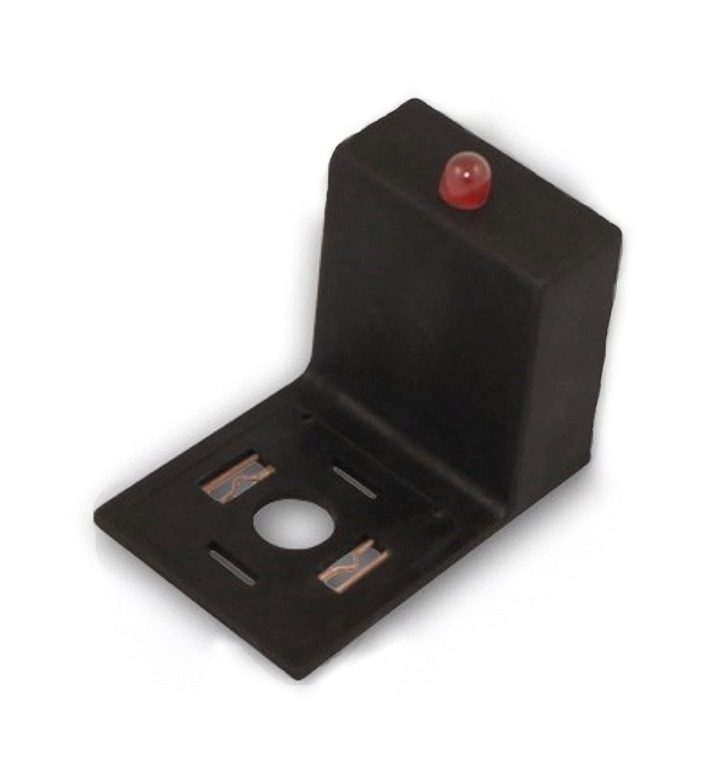

The HTP AG1N02VL2 (Order code: ASA110) sandwich adapter / circuit module is made for DIN 43650 Form A, 2 + ground, non-circuited connectors with 18mm pin spacing. It features a red 115V LED indicator plus MOV surge suppression. When attached, it can create a circuit for a non-circuited DIN connector. The LED indicator confirms the voltage supply while the MOV gives overvoltage protection to the source and load. Note: See images for drawings

Specifications

  • Housing Color- Black
  • Contact Spacing- 18mm
  • Circuit Type- LED + MOV Surge Suppression
  • Number of Poles- 2 Poles + Ground
  • Voltage- 115V
