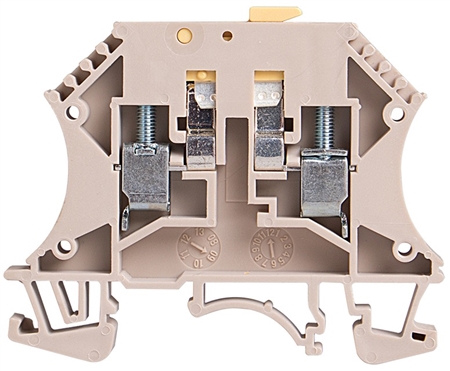

Deca CTR2.5 Screw Clamp Disconnect DIN Rail Terminal Block, 2 Poles, 12-22 AWG

Deca CTR2.5 Screw Clamp Disconnect DIN Rail Terminal Block
Deca CTR2.5 Screw Clamp Disconnect DIN Rail Terminal Block, 2 Poles, 12-22 AWG

Alternative Views:
Price: $1.64
Note: Delivery: 2-5 Business Days
MFG P/N: CTR2.5
MFG: Deca
Weight (lbs): 0.03

Quantity in Stock :100


Availability: In Stock
Product Code: CTR2.5
Qty:

Description


The Deca CTR2.5 screw clamp disconnect DIN rail terminal block accommodates 12-22 AWG wire. This 2 pole terminal block can be mounted easily on any standard 35 mm DIN Rail. It is made from materials that withstand flame, shock, and vibration. The CTR2.5 has a strong contact force, with low contact resistance, and the contact points are corrosion proof. Rated for 600V and 12A.

Specifications

  • Housing Material- Polyamide 6.6, UL94-V0
  • Housing Color- Beige
  • Dimensions- 47.5 x 60 x 5mm
  • Rated Voltage- 600V (UL/CSA) / 500V (IEC)
  • Rated Current- 12A (UL/CSA) / 15A (IEC)
  • Wire Size- 12-22 AWG (0.5-2.5mm2)
  • Torque- 4.5 lb/in
  • Clamping Screw- M3
  • Stripping Length- 10-12mm

Deca CTR2.5 12-22 AWG 600V 12A DIN Rail Terminal Block
