Deca CTR4D Screw Clamp Diode DIN Rail Terminal Block, 2 Poles, 10-22 AWG

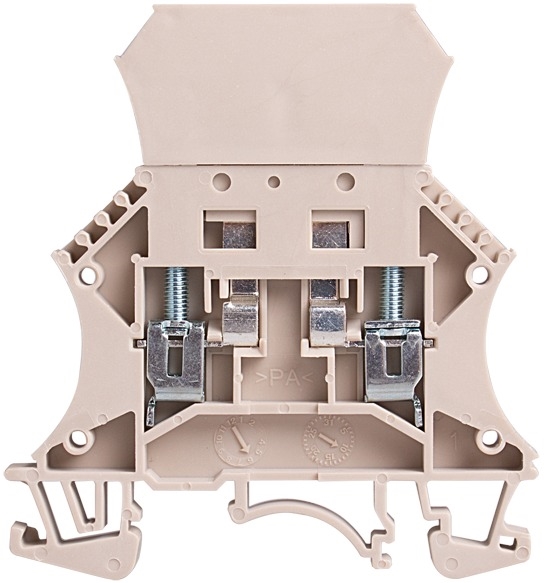

Deca CTR4D Screw Clamp Diode DIN Rail Terminal Block
Deca CTR4D Screw Clamp Diode DIN Rail Terminal Block, 2 Poles, 10-22 AWG

Alternative Views:
Price: $2.96
Note: Delivery: 2-5 Business Days
MFG P/N: CTR4D
MFG: Deca
Weight (lbs): 0.04

Quantity in Stock :100


Availability: In Stock
Product Code: CTR4D
Qty:

Description


The Deca CTR4D screw clamp DIN rail terminal block accommodates 10-22 AWG wire, and is connected by a diode that transfers the current to both terminals. This 2 pole terminal block can be easily mounted on any standard 35 mm DIN Rail. It is constructed from materials that stand up to flame, shock, and vibration. The CTR4D features a strong contact force, with low contact resistance, and the contact points are corrosion proof. Rated for 600V and 2A. UL & CUL Recognized.

Specifications

  • Housing Material- Polyamide 6.6, UL94-V0
  • Housing Color- Beige
  • Dimensions- 65.5 x 60 x 6mm
  • Rated Voltage- 600V (UL/CSA) / 400V (IEC)
  • Rated Current- 2A
  • Wire Size- 10-22 AWG (0.5-4mm2)
  • Torque- 6 lb/in
  • Clamping Screw- M3
  • Stripping Length- 10-12mm
  • Approvals- C UR US

Deca CTR4D 10-22 AWG 2A Disconnect DIN Rail Terminal Block
