Cembre GP-M12 PC Insulated Ring Terminal, Stud Size 1/2", 12-10 AWG
GP-M12 PC Insulated Ring Terminal, Stud Size 1/2", 12-10 AWG
Cembre GP-M12 PC Insulated Ring Terminal, Stud Size 1/2", 12-10 AWG

Alternative Views:
Price: $0.58
Note: Delivery: 2-5 Business Days
MFG P/N: GP-M12
MFG: Cembre Inc.
Weight (lbs): 0.01

Quantity in Stock :190


Availability: In Stock
Product Code: GP-M12
Qty:

Description

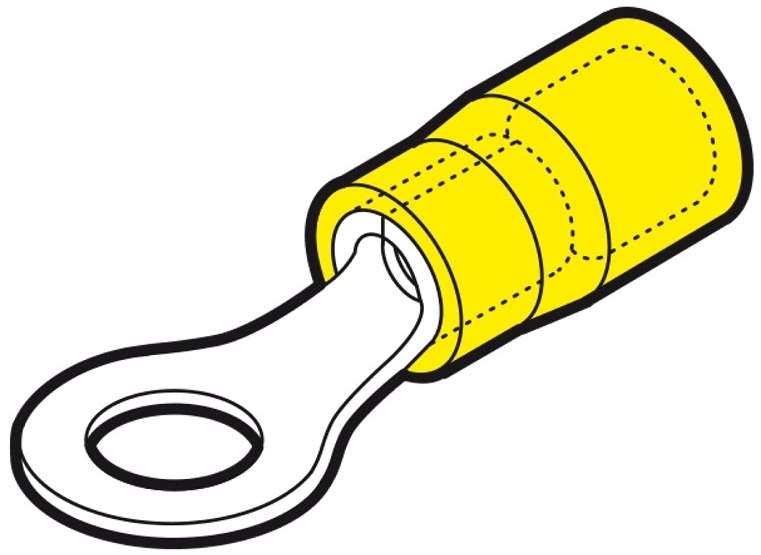

Cembre GP-M12 yellow polycarbonate insulated ring terminal accommodates 12-10 AWG wire and has a stud size of 1/2".

  • Halogen free
  • Made from tin plated electrolytic copper
  • Tin plating (3 um thickness) helps the terminal stand up to corrosion
  • Funneled sleeve for easier connection
  • Used for internal wiring of equipment
  • Rifled terminal barrel for better electrical contact
  • Uses Copper Cu-ETP CWOO4A according to UNI EN 13599
  • Stud size: 1/2"
  • AWG size: 12 - 10 (4 - 6 mm2)
  • Insulation: Yellow Polycarbonate
  • Operating Temperature: -20 C to 115 C (-4 F to 239 F)
  • Dielectric Strength: >30 kV/mm

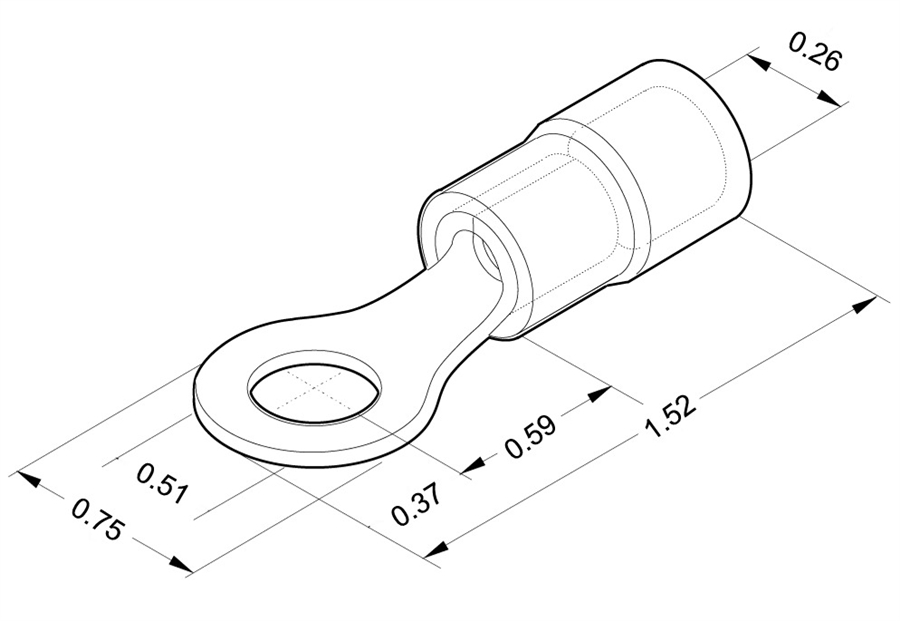

  • Dimensions: 1.52" Length x 0.75" Width
  • Flammability: UL-94 V0
  • Recommended Cable Strip Length: 8 - 9 mm (0.31" - 0.35")
  • Packaging: Loose piece
  • UL & CUL Listed
  • Note: Image is for reference, actual part may differ
