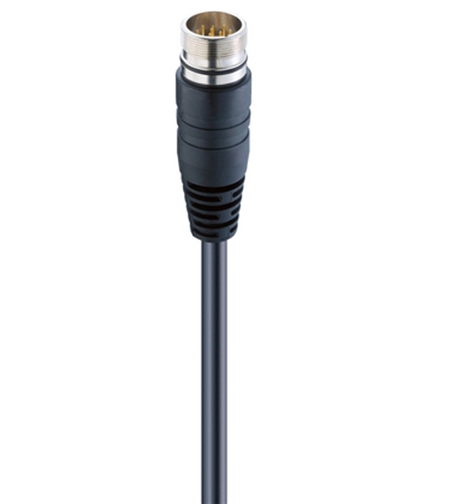

The Lumberg Automation 500000062 RSUF 19-242/10M M23 male straight molded cable cordset with male threads features a 19 pin insert with an operating voltage of 120V, a rated current of 8A and 10 meters of cable. Protection class IP 67. The cable is covered in black PUR, with copper alloy contacts.
Specifications
- Cable Type- Black PUR, halogen free (UL AWM 21198 / 20549)
- Type of Contact- Male Straight
- Number of Pins- 19
- Operating Voltage- 120 V AC/DC
- Rated Current- 16 x 8 Amps, 3 x 10 Amps
- Conductor Size- 16 x 0.5 mm2, 3 x 1 mm2
- Number of Wires- 19 wires
- Cable OD- 11.6 mm (0.46")
- Protection Class- IP 67
- Contact Base Material- CuZn
- Contact Plating- Cu/Au
- Housing Material- TPU
- Insert Material- PBT
- Coupling Nut Material- Nickel Plated CuZn
- Wire Insulation Material- Polypropylene
- O-Ring- FKM
- Insulation Resistance- 10^9 Ohm
- Operating Temperature- -25 C (-13 F) / +80 C (+176 F)
- Cable Length- 10 meters (32.8 ft)
- Approvals- RoHS Compliant

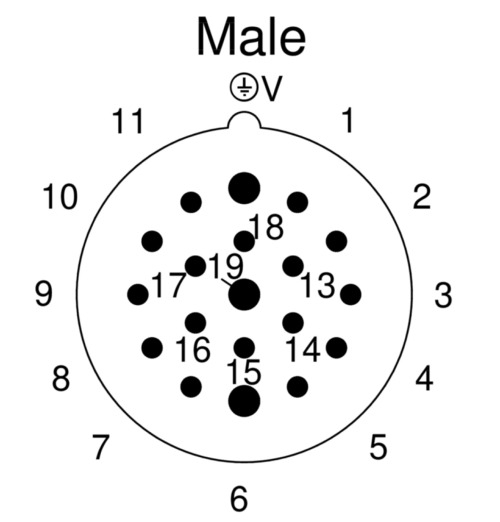

Pin #1 - Violet
Pin #2 - Red
Pin #3 - Gray
Pin #4 - Red/Blue
Pin #5 - Green
Pin #6 - Blue
Pin #7 - Gray/Pink
Pin #8 - White/Green
Pin #9 - White/Yellow
Pin #10 - White/Gray
Pin #11 - Black
Pin #12 - Green/Yellow
Pin #13 - Yellow/Brown
Pin #14 - Brown/Green
Pin #15 - White
Pin #16 - Yellow
Pin #17 - Pink
Pin #18 - Gray/Brown
Pin #19 - Brown
