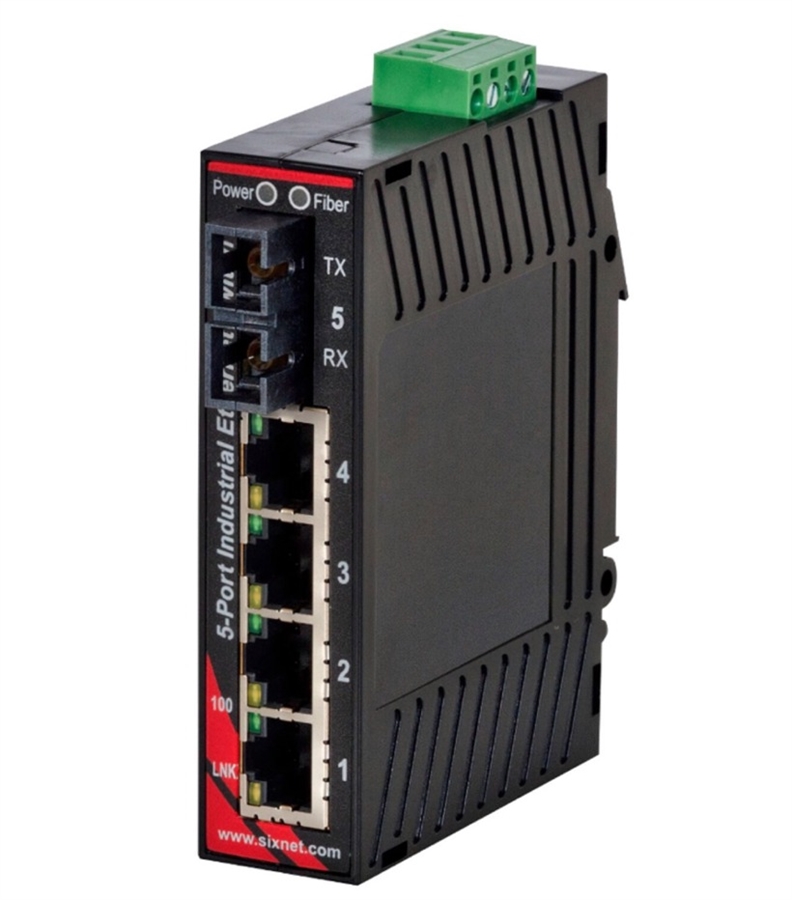

Red Lion Sixnet SL-5ES-2SC Multimode, SC Style Unmanaged Ethernet Switch, 4 KM, 5 Port

Sixnet 5 Port Industrial Ethernet Switch - SL-5ES-2SC
Red Lion Sixnet SL-5ES-2SC Multimode, SC Style Unmanaged Ethernet Switch, 4 KM



Alternative Views:


Price: $258.00
Note: Call 800-966-2345 for Lead Time
MFG P/N: SL-5ES-2SC
MFG: Red Lion Sixnet
Weight (lbs): 0.25



Availability:
In Stock
Product Code: SL-5ES-2SC
Qty:

Description Technical Specs


The Red Lion Sixnet ® Series SL-5ES-2SC is an unmanaged 5 port Industrial Ethernet Switch. Housed in a Lexan DIN rail enclosure, this SlimLine SL series switch features 4km multimode fiber optic cable with an SC style fiber connector. It is designed to run at a speed for optimum real-time performance, as well as to withstand the demands of industrial applications. No complicated user set-up is necessary beforehand, as the switch has complete plug and play capability, reducing installation time. The SlimLine housing ensures that it won't take up much space, leaving more room on the DIN-Rail.

PRODUCT FEATURES

  • Compact Housing
  • Unmanaged Plug & Play Capability
  • Full IEEE 802.3 Compliance
  • 5 Ports: Four RJ45 Ports, One Fiber Port
  • Extended Environmental Specifications
  • -40 C to 60 C Operating Temperature
  • >1M+ Hours MTBF
  • Supports Full/Half Duplex Operation
  • LED Link/Activity Status Indication
  • Auto Senses Speed and Flow
  • MDIX Auto Sensing Cable
  • Redundant Power Inputs (10-30 VDC)
  • Power Inputs with Surge Protection
  • Lexan DIN-Rail Enclosure
  • Fast wire-speed switching
  • Intelligent routing to prevent collisions
  • Auto Polarity Corrects Crossed Signals
  • UL/CSA (CUL), CE & Hazardous Locations (Zone 2) & Maritime rated

Red Lion Sixnet SL-5ES Series User Manual

SL-5ES-2SC 5 Port SC Style Ethernet Switch
