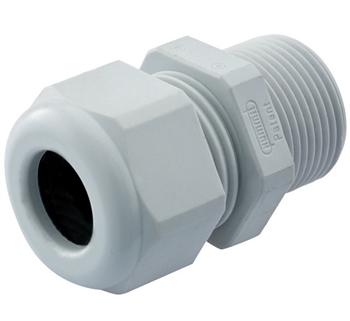

Sealcon CD17DA-GY Gray M16 Dome .20" - .39" (5 - 10 mm) O.D. Elongated Cord Grip

Hummel 1.219.1600.30
Sealcon CD17DA-GY M16 Dome .20" - .39" (5 - 10 mm) O.D. Elongated Cord Grip



Alternative Views:


Price: $2.05
MFG P/N: CD17DA-GY
MFG: Sealcon
Weight (lbs): 0.02

Quantity in Stock :1


Availability:
In Stock
Product Code: CD17DA-GY
Qty:


Description


Sealcon CD17DA-GY high quality gray nylon cord grip with elongated thread is designed for the toughest applications. Also known as Hummel 1.219.1600.30. Sold Individually. Locking nut & O-Ring sold separately

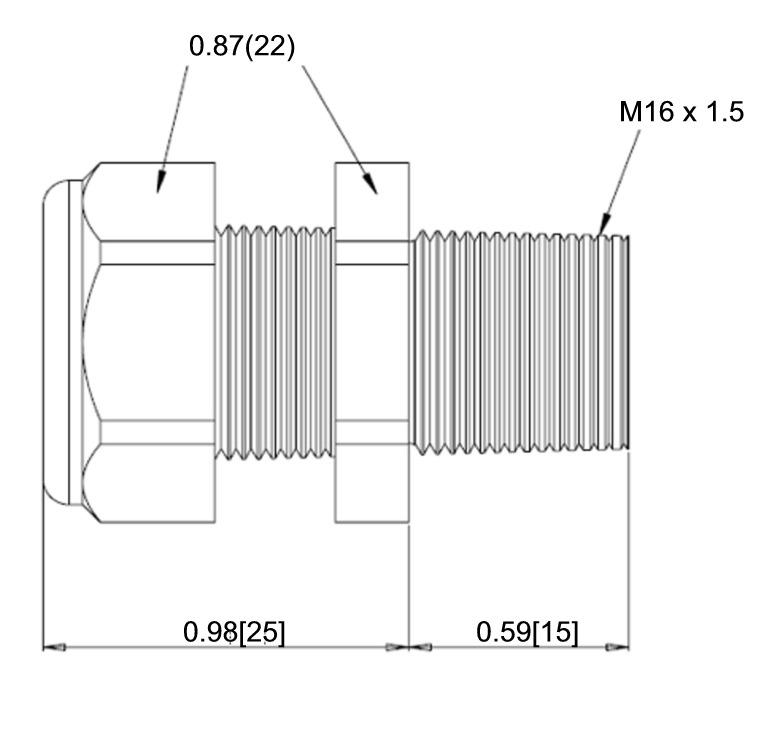

Specifications

  • Thread Size: M16 x 1.5
  • Cable O.D. Range: .20" - .39" (5 - 10 mm)
  • Through Hole Diameter: .63" (16 mm)
  • Body Length: .98" (25 mm)
  • Thread Length: .59" (15 mm)
  • Wrench Flat Dome: .87" (22 mm)
  • Wrench Flat Body: .87" (22 mm)

Features

  • Nylon 6/6 Material with Buna-N Seal
  • Submersible to 300 ft. / NEMA 4x & 6 (IP68 / IP69K)
  • 150 psig (10 bar) Pressure Rating
  • Flame Protected to UL 94
  • Halogen and Phosphorous Free
  • Vibration Resistant Dome
  • Resists salt water, acids, alkalis', gasoline & oils.
  • Durable Rugged Construction
  • RoHS & Deca BDE, CSA approval

Approvals

  • RoHS Compliance
  • Deca Bde Deca-Bromo-Diphenyl-Ether Compliance
  • Registration, Evaluation, Authorization and Restriction of Chemicals
  • Waste Electrical and Electronic Equipment Directive
  • UL / CUL Listed
  • UL Registered
  • EAC
  • CE
  • German Lloyd
  • VDE

Sealcon Elongated M16 x 1.5 Metric Nylon / Plastic Cable Glands are sometimes referred to as cord grips or strain relief fittings. They are used to connect wire or cable to different applications in a large variety of industries. This cable gland provides a NEMA 4x 6 (IP 68 & 69K), 150 PSIG (10 bar) Liquid Tight Rating. Elongated threads are commonly used when the fitting is going through a thick wall, or simply if a longer thread length better serves the application. Sealcon fittings have patented overlapping clamping splines and recessed custom grommets to help protect your cable from damage and the elements. The CD17DA-GY cable gland features a large amount of Pull-out resistance because it applies concentric force on all points of the cable.

Sealcon CD17DA-GY

Additional Product Information
Sealcon Metric Elongated Thread Nylon Dome Fittings
Part Numbers Cable Range Thread Range
Black Gray
CD12DA-BK CD12DA-GY .12" - .26" (3 - 6.5 mm) M12 x 1.5
CD12DR-BK CD12DR-GY .08" - .20" (2 - 5 mm) M12 x 1.5
CD16DA-BK CD16DA-GY .16" - .31" (4 - 8 mm) M16 x 1.5
CD16DR-BK CD16DR-GY .08" - .24" (2 - 6 mm) M16 x 1.5
CD17DA-BK CD17DA-GY .20" - .39" (5 - 10 mm) M16 x 1.5
CD17DR-BK CD17DR-GY .12" - .28" (3 - 7 mm) M16 x 1.5
CD20DA-BK CD20DA-GY .24" - .47" (6 - 12 mm) M20 x 1.5
CD20DR-BK CD20DR-GY .20" - .35" (5 - 9 mm) M20 x 1.5
CD22DA-BK CD22DA-GY .39" - .55" (10 - 14 mm) M20 x 1.5
CD22DR-BK CD22DR-GY .28" - .47" (7 - 12 mm) M20 x 1.5
CD25DA-BK CD25DA-GY .51" - .71" (13 - 18 mm) M25 x 1.5
CD25DR-BK CD25DR-GY .35" - .63" (9 - 16 mm) M25 x 1.5
CD32DA-BK CD32DA-GY .71" - .98" (18 - 25 mm) M32 x 1.5
CD32DR-BK CD32DR-GY .51" - .79" (13 - 20 mm) M32 x 1.5
CD40DA-BK CD40DA-GY .87" - 1.26" (22 - 32 mm) M40 x 1.5
CD40DR-BK CD40DR-GY .79" - 1.02" (20 - 26 mm) M40 x 1.5
CD50DA-BK CD50DA-GY 1.26" - 1.50" (32 - 38 mm) M50 x 1.5
CD50DR-BK CD50DR-GY .98" - 1.22" (25 - 31 mm) M50 x 1.5
CD63DA-BK CD63DA-GY 1.46" - 1.73" (37 - 44 mm) M63 x 1.5
CD63DR-BK CD63DR-GY 1.14" - 1.38" (29 - 35 mm) M63 x 1.5
