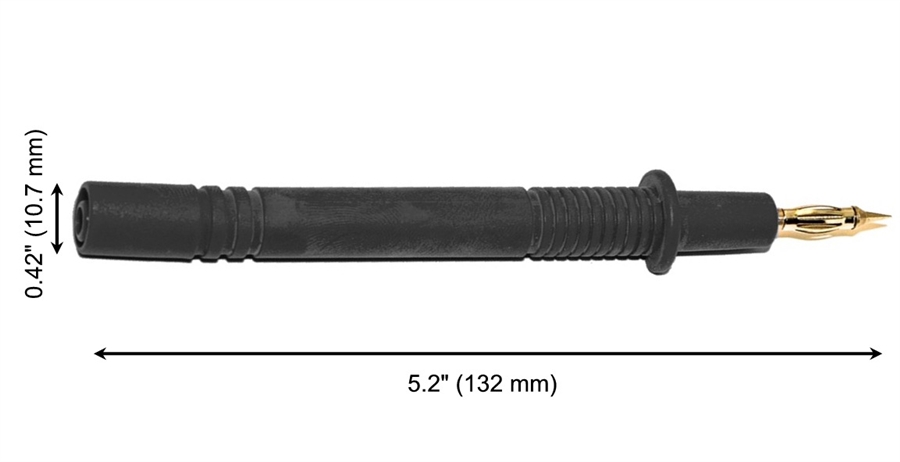

The Mueller BU-26103-0 test probe is black with a 4 mm banana plug behind the probe tip. It is nickel plated phosphor bronze with a PVC housing. The included cap covers the banana plug when only the probe tip is needed. The other end has a banana jack that works with any shrouded, unshrouded, or retractable 4 mm banana plug. The probe tip can be attached to a test lead using the banana jack. It is rated for 1000V (Cat III) and 5A. Sold Individually. RoHS Compliant.
Specifications
- Material- Nickel Plated Phosphor Bronze
- Housing Material- PVC
- Length- 5.2" (132 mm)
- Diameter- .42" (10.7 mm)
- Color- Black
- Rated Current- 5 Amps
- Rated Voltage- 1000V (Cat III)
Mueller BU-26103 Datasheet
Mueller Black Test Probe w/ 4 mm Banana Plug
