Mencom NAN-T-4FP-2M-R Female Right Angle, 4 Pole, 3 A, 2 M, M8 Cordset

Mencom NAN-T-4FP-2M-R Pico M8 Cordset
Mencom NAN-T-4FP-2M-R Female Right Angle, 4 Pole, 3 A, 2 M, M8 Cordset



Alternative Views:


Price: $12.24
MFG P/N: NAN-T-4FP-2M-R
MFG: Mencom
Weight (lbs): 0.12

Quantity in Stock :22


Availability:
In Stock
Product Code: NAN-T-4FP-2M-R
Qty:


Description


The Mencom NAN-T-4FP-2M-R Pico (M8) female right angle cordset features a 4 pin insert, 24 gauge wire and 2 meters of cable. The body is black PVC with gold plated copper alloy contacts. The cable is oil resistant and rated at 60V and 3 Amps. Protection class IP 67. Operating temperature -40 C to 105 C (-40 F to 221 F). Mencom M8 cordsets are known for their M8 size mating thread and are ideal for smaller sensors and actuators.

Specifications

  • Body- Black PVC
  • Insulator- Polyamide
  • Contacts- Gold Plated Copper Alloy
  • Coupling Nut- Nickel Plated Brass
  • Cable- 24/4 AWM 2661 Black PVC
  • Rated Voltage- 60 V
  • Rated Current- 3 Amps
  • Wire Gauge- 24
  • Pin Count- 4
  • Cable Length- 2 M (6.56')
  • Cable O.D.- 0.18
  • Ingress Protection- IP 67 (Total protection from dust and temporary immersion in water - 1 meter (3.28') for up to 30 minutes)
  • Orientation Head- Female Right Angle
  • Coupling Thread- Female
  • Mating Thread / Type Head- M8

Mencom NAN-T-4FP-2M-R 24 AWG 2 Meter 4 Pin Female M8 Cordset

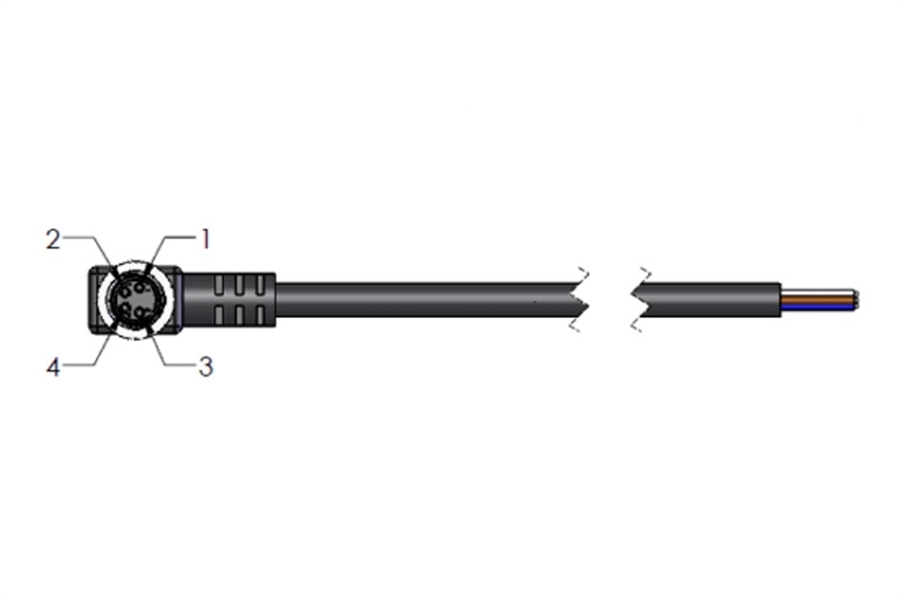

Additional Product Information
Pin #1 - Brown
Pin #2 - White
Pin #3 - Blue
Pin #4 - Black

Can be compatible with certain Turck Picofast and Brad Harrison/Molex 120086-0175

Mencom M8 Molded Cordset Part Number Guide
