The Mencom NAN-T-4FP-10M-R Pico (M8) molded cable cordset features a female right angle connector on one end. It has a 4 pin insert, 24 gauge wire and 10 meters of cable. The contacts are gold plated copper alloy and the oil resistant black PVC cable is rated at 60V and 3 Amps. Protection class IP 67 against exposure to moisture and dirt. Operating temperature -40 C to 105 C (-40 F to 221 F). Mencom M8 cordsets are known for their M8 size mating thread and are typically used for smaller sensors and actuators.

Specifications

• Body- Black PVC
• Insulator- Polyamide
• Contacts- Gold Plated Copper Alloy
• Coupling Nut- Nickel Plated Brass
• Cable- 24/4 AWM 2661 Black PVC
• Rated Voltage- 60 V
• Rated Current- 3 Amps
• Wire Gauge- 24
• Pin Count- 4
• Cable Length- 10 M (32.8')
• Cable O.D.- 0.18
• Ingress Protection- IP 67 (Total protection from dust and temporary immersion in water - 1 meter (3.28') for up to 30 minutes)
• Orientation Head- Female Right Angle
• Coupling Thread- Female
• Mating Thread / Type Head- M8

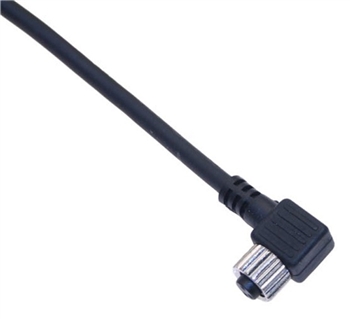

Mencom 90 Degree Female 4 Pin M8 Molded Cable NAN-T-4FP-10M-R
