The Mencom MDCM-4MP-FW Micro DC (M12) male straight field wireable plug features a 4 pin insert. Cable entry accepts 3-9 mm cable. The body is nickel plated brass with gold plated copper alloy contacts. The MDCM-4MP-FW has a rated voltage of 250V and a rated current of 4A. This M12 connector can be wired by inserting the wires into the screw terminal contacts. It is liquid tight and works with other Mencom MDC series M12 connectors. Rated IP67 for dust and water protection. Operating temperature: -25 C to 85 C (-13 F to 185 F). Mencom MDC hardwired plugs are known by their M12 coupling nut and single keyway. They have plug and play capability for immediate use in different applications, particularly in sensors.

Specifications

• Body- Nickel Plated Brass
• Insert- Polyamide
• Contacts- Gold Plated Copper Alloy
• Coupling Nut- Nickel Plated Brass
• Seal- NBR

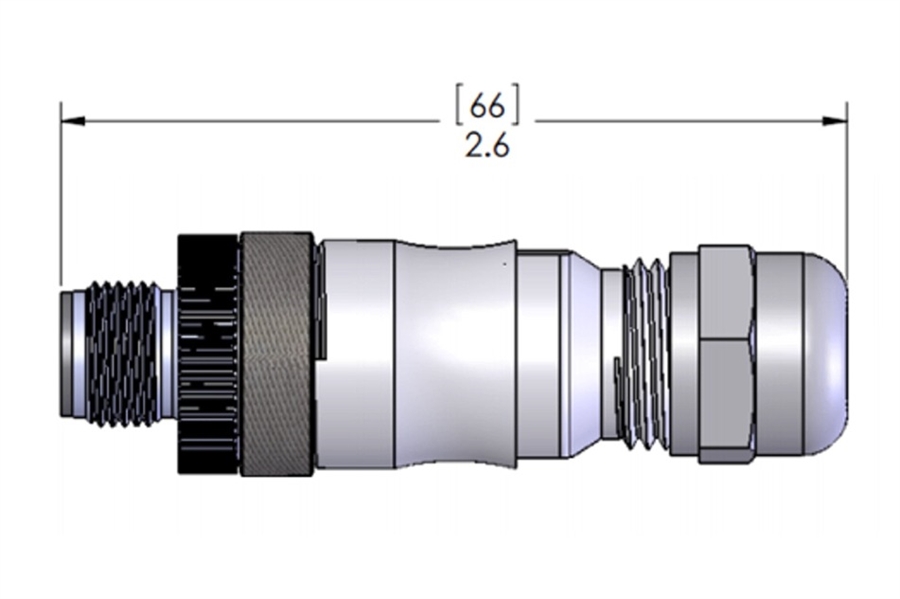

• Overall Dimensions- 2.6" Length x 0.8" Diameter
• Rated Voltage- 250 V
• Rated Current- 4 Amps
• Pin Count- 4
• Shielding- Yes
• Cable O.D. Range- 3-9 mm
• Upper AWG- 18
• Lower AWG- 24
• Ingress Protection- IP 67 (Total protection from dust and temporary immersion in water - 1 meter (3.28') for up to 30 minutes)
• Orientation Head- Male Straight
• Coupling Thread- Male

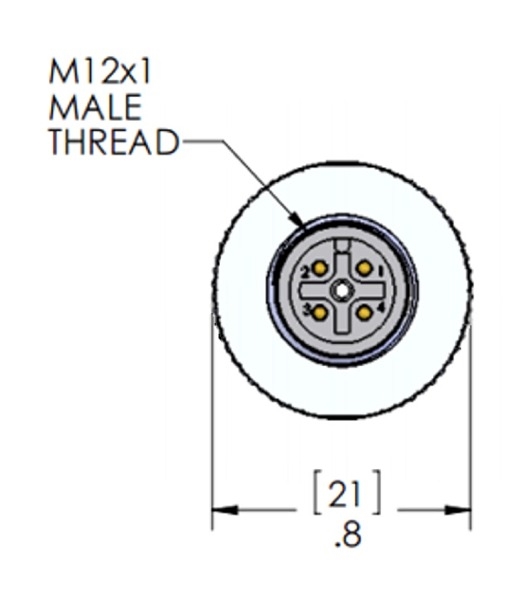

• Mating Thread/Type Head- M12
• Nut- No
• Gland Upper Range- 9 mm
• Gland Lower Range- 3 mm

Mencom MDCM-4MP-FW Nickel Plated Brass Hardwired M12 Connector
