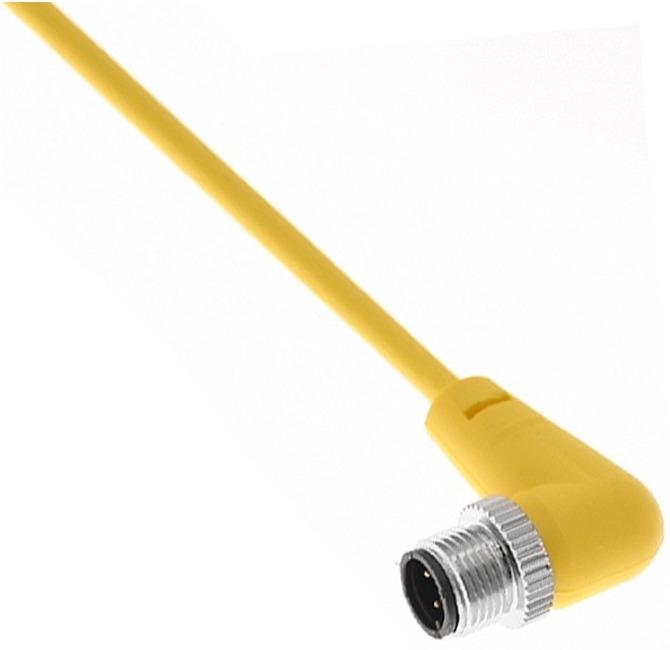

The Mencom MDC-5MP-5M-R Micro DC (M12) male right angle cordset features a 5 pin insert, 22 gauge wire and 5 meters of cable. The body is yellow PVC with gold plated copper alloy contacts. The cable is oil resistant and rated at 300V and 105 C. Rated IP 69. Operating temperature -40 C to 105 C (-40 F to 221 F). Mencom MDC cordsets use an M12 coupling nut and provide plug and play solutions for various applications.
Note: The ground pin is no longer a part of the 5 pin male M12 inserts
Pin #1 - Brown
Pin #2 - White
Pin #3 - Blue
Pin #4 - Black
Pin #5 - Gray
Specifications
- Body- Yellow PVC
- Insulator- Polyamide
- Contacts- Gold Plated Copper Alloy
- Coupling Nut- Nickel Plated Brass
- Cable- 22/5 AWM Yellow PVC Jacket
- Rated Voltage- 300 V
- Rated Current- 4 Amps
- Wire Gauge- 22
- Pin Count- 5
- Cable Length- 5 meters (16.4 ft)
- Cable O.D.- 0.22
- Ingress Protection- IP 69 (Total protection from dust as well as high pressure and high temperature water jets from any direction)
- Orientation Head- Male Right Angle
- Coupling Thread- Male
- Mating Thread / Type Head- M12
- Nut- No
- Approvals- UL & CUL Listed

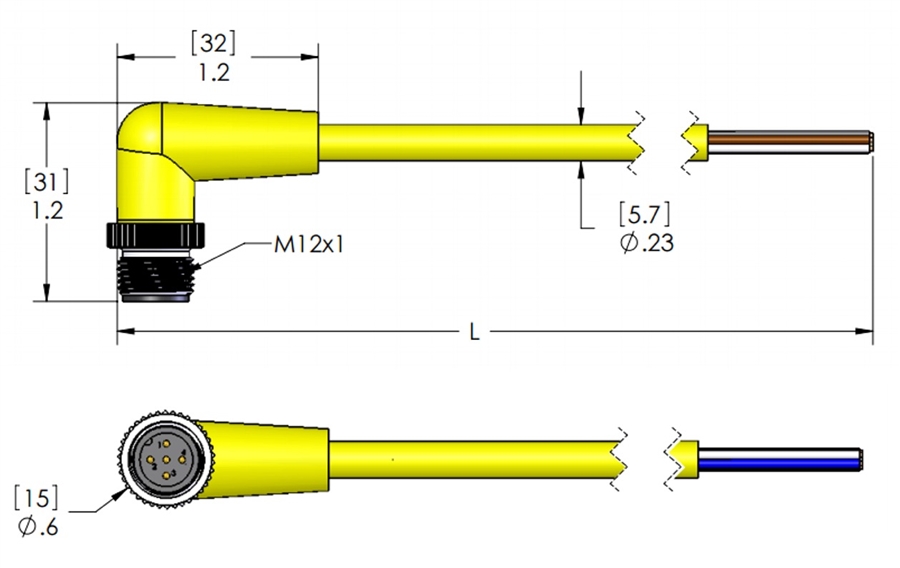

Mencom MDC-5MP-5M-R 5 Pin Male M12 Molded Cable
|
|
|
 |
|
 |
