The Menics PTE-AF-102-R-B 1 stack LED tower light has a 56mm diameter and is rated for 24V. It has a red lens with a steady/flashing light and is prewired with 25" lead. This PTE series pole mounted light has a modular system, making it easier to switch out parts if needed. It has a prism cut lens for optimal light distribution. The signal light itself comes pre-assembled. Perfect for applications in factory automation. Rated IP 65. Note: If you are using a 750 mm or 1000 mm pole, you will need a longer lead length. The lead can be modified yourself, or by the factory upon request. See the link to our accessory chart below the description to find out which mounting accessories are compatible with each other.

Specifications

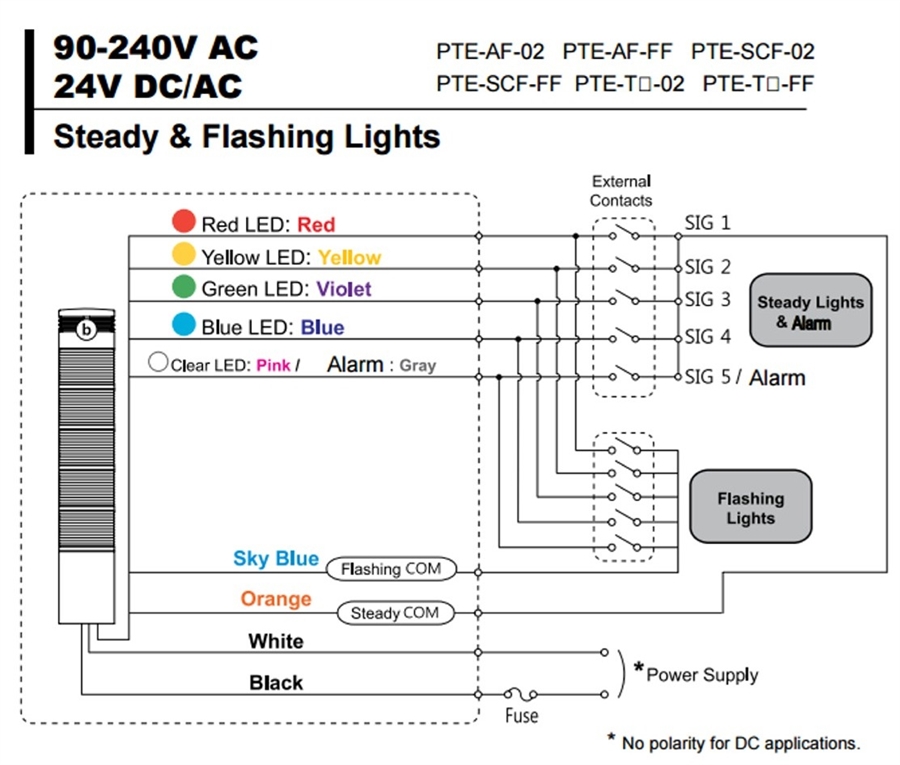

Light Operation- Steady/Flashing
Power Supply- 24V AC/DC
Mounting/Connection- Pole Mount or Wall Mount (with threaded pole) / Lead Wires (see mounting accessories below)
Lead Length- 25"
Lens Colors- Red
Number of LED Tiers- 1 Stack
Dimensions (Tower Light Only)- 159 mm Height x 56 mm Diameter (6.26" x 2.2")
Current Consumption- 0.033 Amps
Flash Rate- 80 times per minute
Vibration- 3mm at 10-55Hz
Ambient Temperature- -15 C to 40 C (5 F to 104 F)
Storage Temperature- -40 C to 70 C (-40 F to 158 F)
Ambient Humidity- 45-85% Relative Humidity
Recommended Wire Size- 1007 UL / 22 AWG
IP Protection- IP 65 (Total protection from dust and water jets in any direction)
Approvals- CE, UL, RoHS

Find out which mounting accessories you need with our Menics Signal Light Mounting Accessory Chart

Menics PTE-AF-102-R-B 1 Tier 24V Red LED Tower Light
