Light Efficient Design LED-8035E40-A 60W Low Bay Light, 4000K, 120/277V

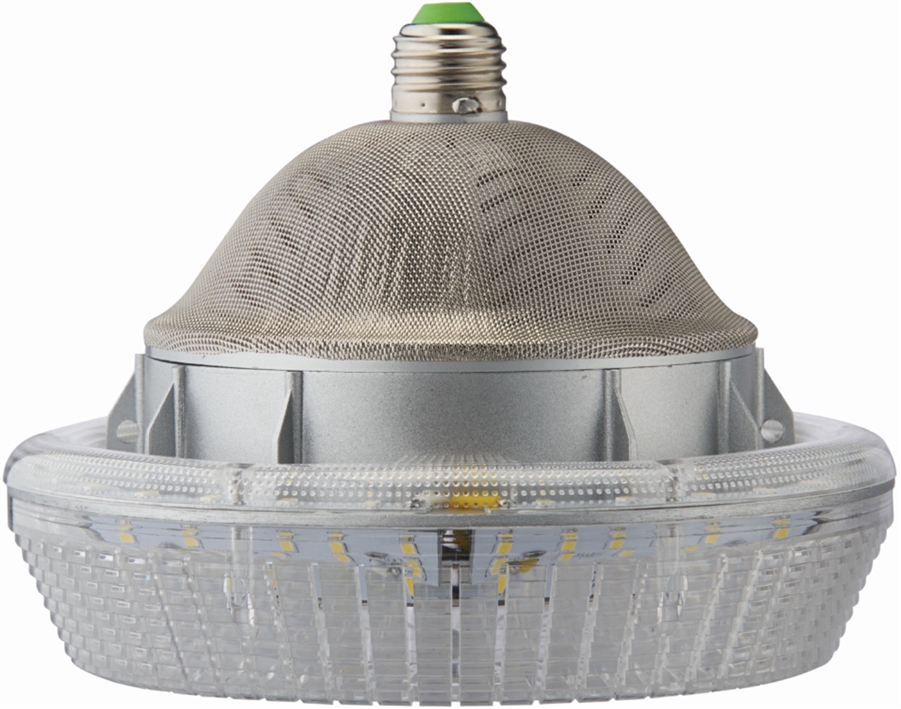

Light Efficient Design LED-8035E40-A Low Bay Light
Light Efficient Design LED-8035E40-A 60W Low Bay Light, 4000K, 120/277V



Alternative Views:


Price: $87.50
MFG P/N: LED-8035E40-A
MFG: Light Efficient Design
Weight (lbs): 2.64

Quantity in Stock :42


Availability:
In Stock
Product Code: LED-8035E40-A
Qty:

Description


The Light Efficient Design LED-8035E40-A is a 60W utility retrofit cool white LED light with #2835 HongLi LEDs. It has a rated voltage of 120-277VAC with a luminosity of 6683Lm and color temperature of 4000K.

  • Features 70,000 hr Sunon cooling fan
  • Keeping the temp down in an enclosed fixture maintains the lifespan of the light
  • Bypass ballast during installation
  • UL classified for damp locations & approved for enclosed fixtures

Specifications

  • LED Bulb Type- Site / Warehouse
  • Bulb Material- Aluminum / Polycarbonate
  • Base Type- E26 Edison (26mm diameter)
  • LED Dimensions- 7.8" Width x 6.1" Length
  • Color- Cool White
  • Lumens- 6684
  • Input Voltage- 120-277V AC
  • Output Power- 60 Watts
  • CRI- 84.4
  • Life Expectancy- Up to 50,000 hrs
  • Replaces- HID lamps up to 175W
  • Beam Angle- 180
  • Dimmable- No
  • Lumens per Watt- 111
  • Light Source- HongLi #2835 LEDs
  • Color Temperature- 4000K
  • Operating Temperature- -40 F to 122 F (-40 C to 50 C)
  • Approvals- UL1993, UL1598C, C UL US
  • Warranty- 5 Year manufacturer's warranty

Light Efficient Design LED-8035 Installation Instructions

Light Efficient Design 60W Utility Light LED-8035E40-A

Additional Product Information

The advantages of using the LED-8035E40-A include lower energy costs and replacement costs, due to its long life. It is useful in a number of different low bay fixtures with PC or glass globes, including parking garages, gas station canopies, and manufacturing plants. Sealing the fixture after installation ensures better performance.

Certain LED lights may be eligible for rebates from your utility company. Find out more here.

LED-8035 Data Sheet

Light Efficient Design High Bay / Low Bay LED Lights
Model Number Color Temp Watts Lumens Base Type Dimmable Replaces
LED-8030M*-MHBC 4000K 140W 18619 EX39 No 320W M132 or
400W M59 MH
LED-8035E*-A 4000K
5700K
60W 6684
7062
E26 No 175W
LED-8036M*-MHBC 5700K 100W 10096 EX39 No 250W M58 or
320W M132 MH
LED-8056E*-A 4000K
5000K
45W 5334
5560
E26 No 175W
LED-8056M*-A 4000K
5000K
45W 5334
5560
EX39 No 175W
LED-8057M*-A 3000K
4000K
5000K
75W 9750
10500
10875
EX39 No 250W
LED-8130* 5000K 150W 19375 EX39 No 400W
LED-8130*-OCC 4000K
5000K
150W 19285
19375
EX39 Yes with motion sensor 400W
LED-8132* 4000K
5000K
135W 17055
17095
EX39 No 400W
LED-8132M*D 4000K
5000K
135W 18600
19200
EX39 Yes 400W
LED-8136* 4000K
5000K
90W 11825 EX39 No 250W
LED-8136M*D 4000K
5000K
90W 12400
12900
EX39 Yes 250W
LED-8232* 5000K 140W 19500 EX39 No 400W
LED-8232*D-HV 4000K
5000K
140W 18730
19330
EX39 Yes 400W
LED-8236* 4000K
5000K
95W 12900
13000
EX39 No 250W
LED-8242* 4000K
5000K
270W 34415
35425
EX39 No 1000W
LED-8242*-HV 4000K
5000K
270W 34415
35425
EX39 No 1000W
