ILME TMAP-16.40 T-Type Surface Mount Housing, Size 77.27, Double Lever, M40

ILME TMAP-16.40
ILME T-Type Surface Mount Housing, Size 77.27, Double Lever, M40 - TMAP-16.40



Alternative Views:


Price: $27.50
MFG P/N: TMAP-16.40
MFG: ILME
Weight (lbs): 0.37



Availability:
In Stock
Product Code: TMAP-16.40
Qty:


Description

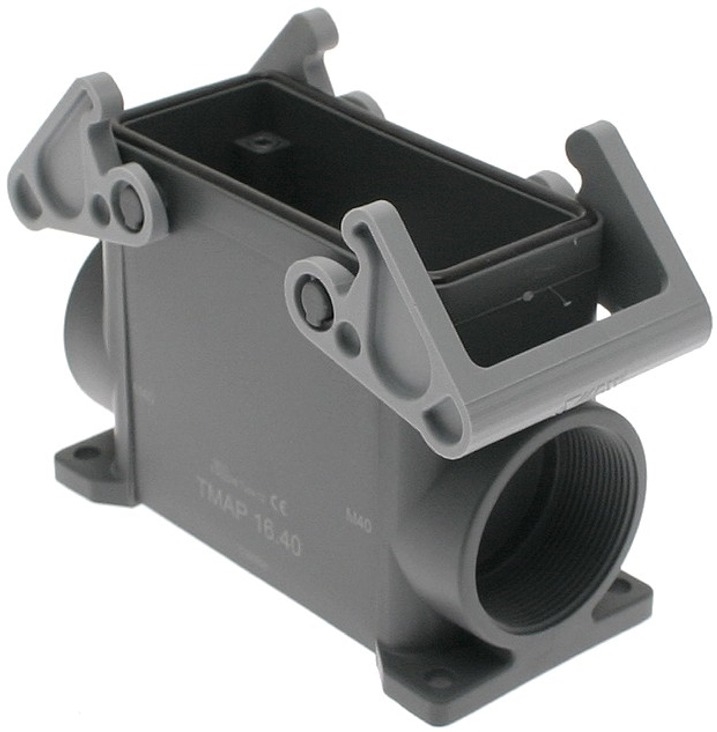

The ILME TMAP-16.40 T-Type surface mount standard housing is size 77.27 and features two levers with an M40 cable entry. The body is made from thermoplastic material with thermoplastic levers. Insert center distance: 77.5 x 27 mm. Rated IP 65 when attached and locked down. The TMAP-16.32 is cost effective and resistant to corrosion, which makes it ideal for use under more extreme conditions.

Specifications

  • Body- Thermoplastic
  • ILME Series- T
  • Insert Dimension- 77.27
  • Enclosure Dimension- 77.27
  • Housing Type- Insulating
  • Enclosure Type- 2 Levers
  • Mounting Style- Surface Mount
  • Hood Entry- Side
  • Hood Thread- M40
  • Gasket- Yes
  • Temperature Range- -40 C to 90 C (-40 F to 194 F)
  • Ingress Protection- IP 65 (Total protection from dust and low pressure water jets from any direction)

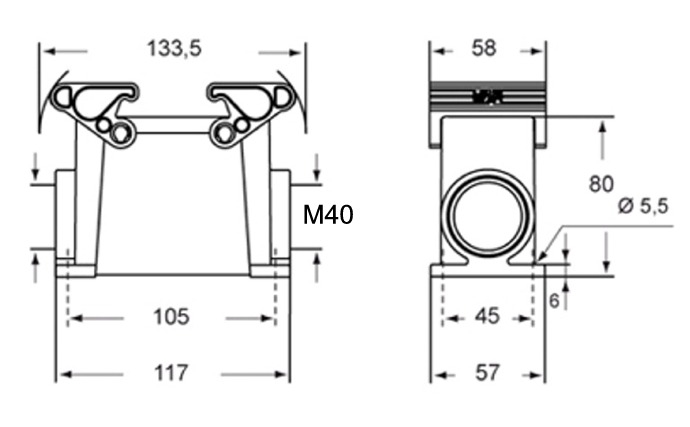

  • Insert Center Distance- 77.5 x 27 mm (3.05" x 1.06")
  • Approvals- C UR US, CCC

Compatible Inserts

Series Part Number
CD CDF-40, CDM-40
CDD CDDF-72, CDDM-72
CQE CQEF-32, CQEM-32
CSH, CDSH CSHF-16, CSHM-16
CDSHF-27, CDSHM-27
CCE CCEF-16, CCEM-16
CNE CNEF-16T, CNEM-16T, CNEF-16TX, CNEM-16TX
CSEM-16, CSEF-16
CSS CSSF-16, CSSM-16
CME CMEF-06T, CMEM-06T
CP CPF-06, CPM-06
CX CXF-6/36, CXM-6/36
CXF-12/2, CXM-12/2
CXF-4/0, CXM-4/0, CXF-4/2, CXM-4/2

ILME 77.27 M40 Cable Entry Surface Mount Base TMAP-16.40
