ILME KMNLS-03IO20 Kit, 3 Pole Inserts, Screw Termination, Single Lever Base, Side Entry M20 Hood, Metal

KMNLS-03IO20
ILME Kit, 3 Pole, Screw, Single Lever, Side Entry, M20, Metal - KMNLS-03IO20



Alternative Views:


Price: $36.94
MFG P/N: KMNLS-03IO20
MFG: ILME
Weight (lbs): 0.4

Quantity in Stock :(Out of Stock)


Availability:
Out of Stock
Product Code: KMNLS-03IO20
Qty:


Description


The ILME KMNLS-03IO20 kit is size 21.21 with 3 pole male & female screw terminal inserts, a metal side entry hood and a metal single lever base. The hood thread is size M20. Insert dimensions 21 x 21 mm. The KMNLS-03IO20 features a clamping force that is constant due to the stainless steel locking system. It has a life expectancy of over 500 cycles. These connector kits can be used in many different types of applications, including automation, food processing, robotics, transportation, injection molding and material handling.

Included Components

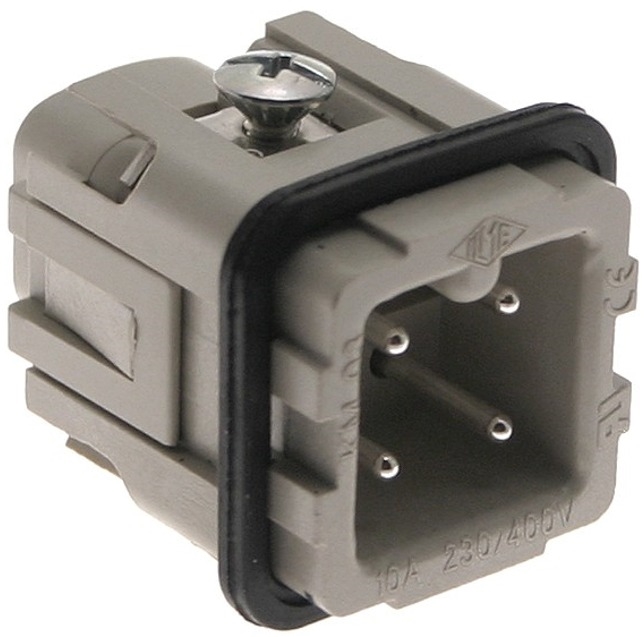

Male Insert: CKM-03

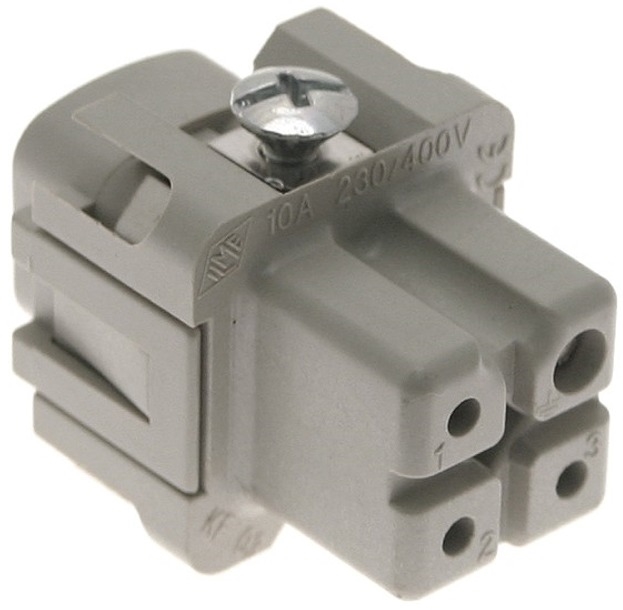

Female Insert: CKF-03
Base: CKAX-03I

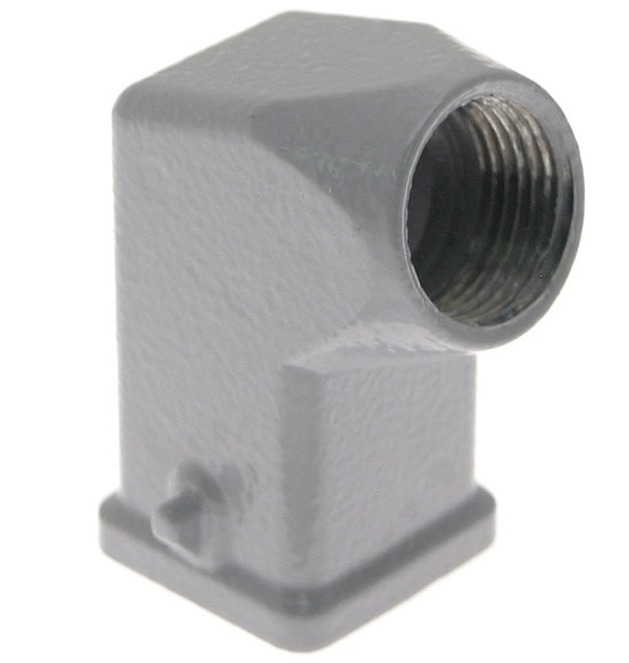

Hood: MKA-VA20

Specifications

  • Pin Count- 3
  • ILME Series- KIT
  • Housing Type- Standard
  • Insert Dimension- 21.21
  • Enclosure Dimension- 21.21
  • Termination- Screw
  • Enclosure Type- Single Lever
  • Mounting Style- Panel Mount
  • Hood Entry- Side
  • Hood Thread- M20
  • Pegs- 2 Pegs
  • Gasket- Yes
  • Number of Entries- 1
  • Temperature Range- -40 C to +125 C (-40 F to 257 F)
  • Ingress Protection- IP 66 / IP 67 (Total protection from dust and high pressure water jets from any direction and temporary immersion in water - 1 meter (3.28') for up to 30 minutes)
  • Insert Dimensions- 21 x 21 mm (.8" x .8")
  • Approvals- UL, CUL

ILME 21.21 3 Pin Insert Kit KMNLS-03IO20
