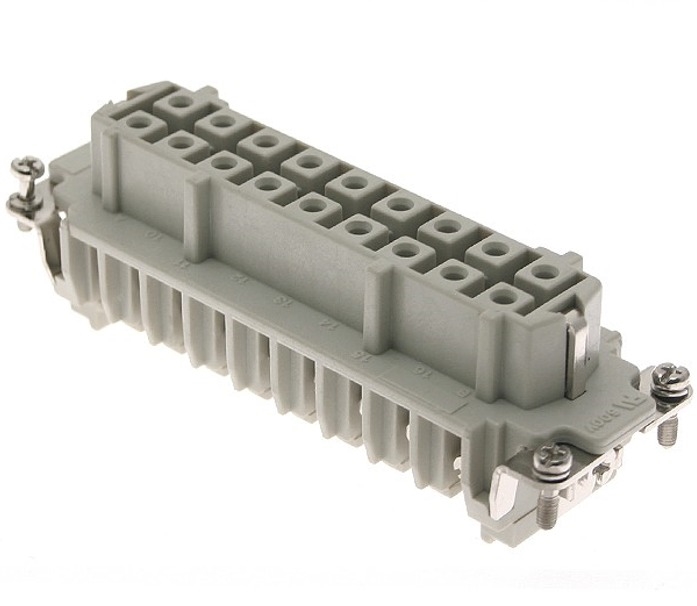

The ILME CMEF-16 CME series standard female insert fits size 104.27 enclosures and is 16 pin + ground with 2 auxiliary poles. It has a voltage rating of 600V and a rated current of 16A. It has a
reinforced thermoplastic housing with silver plated contacts. The housing is self-extinguishing and is rated UL 94 V0. Rated IP 20. Termination: screw. The CMEF-16 is recommended for use in applications with high voltages.
Specifications
- Housing- Thermoplastic
- Contacts- Silver Plated
- Gender- Female
- Pin Count- 16 + Ground, 2 Auxiliary
- Rated Current- 16 Amps
- Rated Voltage- 600 V
- ILME Series- CME
- Insert Type- Standard
- Operating Temperature- -40 C to 125 C (-40 F to 257 F)
- Insert Dimension- 104.27
- Double Insert- 104.62
- Enclosure Dimension- 104.27
- Termination- Screw
- Upper AWG- 14
- Lower AWG- 20
- Insulation Resistance- >= 10 GOhm
- Mechanical Life- >= 500 Cycles
- Contact Resistance- <= 1 mOhm
- Ingress Protection- IP 20 (Protection from objects 12.5mm (0.5") in diameter or larger)
- Approvals- UL, CSA, CCC, GOST
Compatible Enclosures
|
Series
|
Part Number
|
|
TC, TM
|
TCHI-24,
TMAP-24.40, TMAP-24.32
TMAO-24.40, TMAO-24.32, TCHC-24
|
|
CH, CA
|
CHIW-24,
CHOW-24,
CHCW-24, CHVW-24, CHVW-24G,
CAVW-24.29, CAOW-24.29
|
|
CM, CMA
|
CMI-16
|
ILME 104.27 16 Pin Female Insert CMEF-16
|
|
|
 |
|
 |
|
