Mencom LP2-DP-USB-10 Low Profile Panel Interface Connector, Duplex outlet, USB - 10 Foot

Mencom LP2-DP-USB-10 Low Profile Programming Interface
Mencom Low Profile Panel Interface Connector, Duplex outlet, USB - 10 Foot

Alternative Views:
Price: $159.08
Note: Please call or email [email protected] for alternatives
MFG P/N: LP2-DP-USB-10
MFG: Mencom
Weight (lbs): 1.6

Quantity in Stock :(Out of Stock)


Availability: Out of Stock
Product Code: LP2-DP-USB-10
Qty:


Description

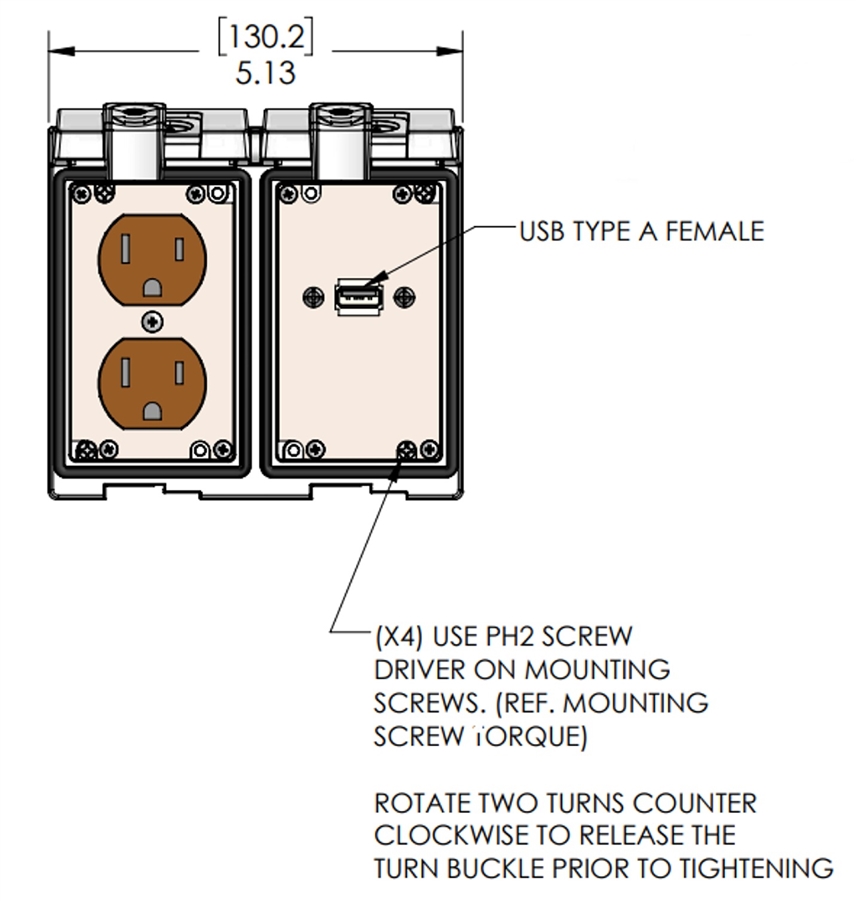

The Mencom LP2-DP-USB-10 panel interface connector (PIC) features a 120V Duplex Receptacle, and 10 feet of USB Type A connector cable in a two cover housing. Housing is rated IP 65 and features sliding lock mechanisms that can be opened using a flat head screwdriver. Mencom PICs attach to the outside of the control panel and allow access to the PLC or PAC without having to open the panel door. The low profile housing is 75% lower than a standard PIC, & has a clear cover to view the components inside.

Specifications

  • Body- Nickel Plated Zinc
  • Front Cover- Polycarbonate
  • Latch & Lock- PBT
  • Back Cover- Polypropylene
  • Gasket- Nitrile/UL70
  • Volts- 125V
  • Amps- 15 Amps
  • SCCR- 10kA
  • Housing- Two Cover Low Profile Housing
  • Housing Dimensions- 5.13" Width x 4.6" Height x 4.11" Depth
  • Power Ports- 120V Duplex Receptacle
  • USB- 10 Foot Cable, Female Form A to Male Form A
  • Screw Size- M3
  • Torque- 0.9 N-m (0.675 Lb-Ft)

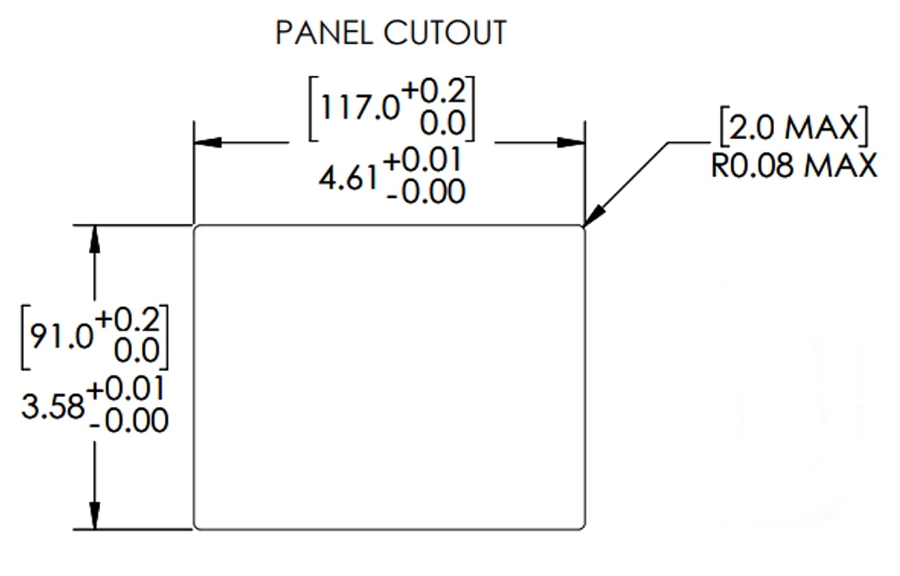

  • Panel Thickness- 5mm max.
  • IP Rating- IP 65 (Total protection from dust and low pressure water jets from any direction)

Mencom LP2-DP-USB-10 Low Profile PIC with 10 Feet of USB Cable
