Mencom MIN-3MR-1-R MIN Size I Receptacle, 3 Pole, Male Right Angle, 1/2"-NPT

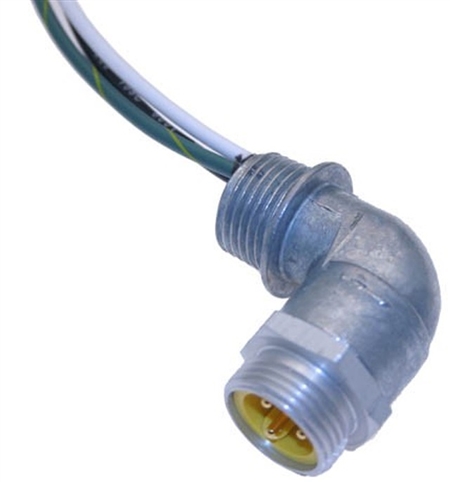

Mencom MIN Size I Receptacle - MIN-3MR-1-R
Mencom MIN-3MR-1-R MIN Size I Receptacle, 3 Pole, Male Right Angle, 1/2"-NPT



Alternative Views:


Price: $22.59
MFG P/N: MIN-3MR-1-R
MFG: Mencom
Weight (lbs): 0.1



Availability:
In Stock
Product Code: MIN-3MR-1-R
Qty:


Description


The Mencom MIN-3MR-1-R MIN Size I male right angle receptacle features a 3 pin insert, 16 AWG wire and a 12 inch lead length. The shell is die cast zinc with gold plated copper alloy contacts. The wire is rated at 600V and the PVC insulator is oil resistant. Rated IP 69. Operating temperature -40 C to 105 C (-40 F to 221 F). Mencom MIN Size I (7/8") receptacles provide plug and play solutions for various applications.

Specifications

  • Hex- Clear Anodized Aluminum
  • Elbow- Die Cast Zinc
  • Contacts- Gold Plated Copper Alloy
  • Insulator- Oil Resistant Yellow PVC, 105 C
  • Wire- 16 AWG UL1015
  • Rated Voltage- 600 V
  • Rated Current- 13 Amps
  • Wire Gauge- 16
  • Pin Count- 3
  • Cable Length- 1 Foot (0.3 M)
  • Ingress Protection- IP 69 (Total protection from dust as well as high pressure and high temperature water jets from any direction)
  • Orientation Head- Male Right Angle
  • Coupling Thread- Male
  • Mounting Thread- 0.5 NPT
  • Mating Thread / Type Head- 7/8-16UN2
  • Ground Wire- Yes
  • Mounting Style- Front Mount
  • Nut- No
  • Termination- Discrete
  • Approvals- UL & CUL Listed

Mencom MIN-3MR-1-R 3 Pin Male Right Angle MIN Size I Receptacle

Additional Product Information
Pin #1 - Green/Yellow
Pin #2 - Black
Pin #3 - White

Mencom MIN Receptacle Part Number Guide
