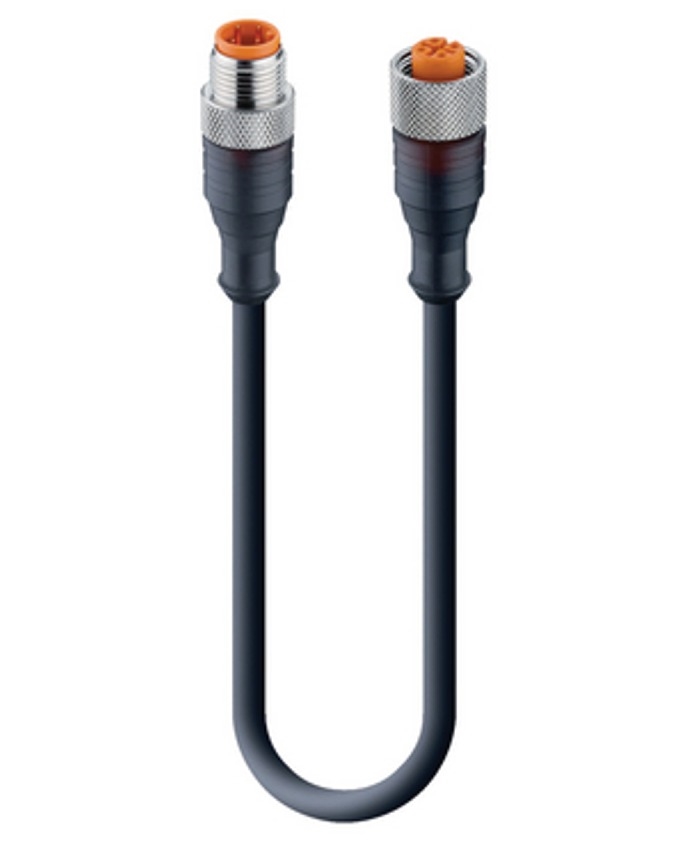

Lumberg Automation RST 4-RKT 4-225/5M M12 Cordset, Male/Female Straight, 4 Pin, 5 M

Lumberg Automation RST 4-RKT 4-225/5M M12 Cordset
Lumberg Automation RST 4-RKT 4-225/5M M12 Cordset, Male/Female Straight, 4 Pin, 5 M



Alternative Views:


Price: $32.10
MFG P/N: 11826
MFG: Lumberg Automation
Weight (lbs): 0.4

Quantity in Stock :1


Availability:
In Stock
Product Code: 11826
Qty:


Description


The Lumberg Automation 11826 RST 4-RKT 4-225/5M M12 male/female straight extension cordset features a 4 pin insert with a nominal voltage of 240V, a nominal current of 4A and 5 meters of cable. Protection class IP 67 / NEMA 6P. The cable is covered in black halogen free PUR, with copper alloy contacts. Features self-locking thread. It stands up to vibration, and is perfect for use in applications involving sensors and actuators. Can be crossed with Rockwell 889D-F4UCDM-5, Turck RK 4.4T-5-RS 4.4T/S1064, or Phoenix SAC-3P-MS/ 5,0-PUR/ FS SCO BK

Pin #1: Brown
Pin #2: White
Pin #3: Blue
Pin #4: Black

Specifications

  • Cable Type- Black PUR, halogen free
  • Type of Contact- Female Straight, Male Straight
  • Number of Pins- 4
  • Nominal Voltage- 240 V
  • Rated Voltage- 250 V
  • Test Voltage- 2.0 kV eff. / 60 s
  • Nominal Current- 4 Amps
  • Conductor Size- 4 x 0.34 mm2
  • Cable OD- 4.7 mm
  • Protection Class- IP 67 / NEMA 6P
  • Contact Material- CuSn, pre-nickeled & gold plated
  • Housing Material- TPU
  • Insert Material- TPU
  • Coupling Nut Material- Nickel Plated Brass
  • O-Ring- FKM (only RKT)
  • Contact Resistance- <= 5 mOhm
  • Insulation Resistance- >109 Ohm
  • Operating Temperature- -25 C (-13 F) / +80 C (+176 F)
  • Cable Length- 5 meters (16.4 ft)
  • Approvals- C UR US

Lumberg Automation 4 Pin 5 Meter M12 Extension Cable

Additional Product Information
Lumberg Automation M12 Molded Cordset Part Number Guide

M12 Molded Cable Cordsets & Connectors Overview

Lumberg Automation Male / Female M12 Molded Cable Cordsets
Pin Count Cable Length (meters) Orientation Cable Type Wire AWG Part Number
3 0.3 Straight Gray PVC 22 RST 3-RKT 4-3-659/0.3M
3 0.3 Male Straight / Female Right Angle Gray PVC 22 RST 3-RKWT 4-3-659/0.3M
3 0.6 Straight Gray PVC 22 RST 3-RKT 4-3-659/0.6M
3 0.6 Male Straight / Female Right Angle Gray PVC 22 RST 3-RKWT 4-3-659/0.6M
3 1 Straight Gray PVC 22 RST 3-RKT 4-3-659/1M
3 1 Male Straight / Female Right Angle Gray PVC 22 RST 3-RKWT 4-3-659/1M
3 2 Straight Gray PVC 22 RST 3-RKT 4-3-659/2M
3 2 Male Straight / Female Right Angle Gray PVC 22 RST 3-RKWT 4-3-659/2M
4 0.3 Straight Gray PVC 22 RST 4-RKT 4-646/0.3M
4 0.3 Male Straight / Female Right Angle Gray PVC 22 RST 4-RKWT 4-646/0.3M
4 0.5 Male Straight / Female Right Angle Gray PVC 22 RST 4-RKWT 4-646/0.5M
4 0.6 Straight Gray PVC 22 RST 4-RKT 4-646/0.6M
4 0.6 Male Straight / Female Right Angle Gray PVC 22 RST 4-RKWT 4-646/0.6M
4 1 Straight Gray PVC 22 RST 4-RKT 4-646/1M
4 1 Male Straight / Female Right Angle Gray PVC 22 RST 4-RKWT 4-646/1M
4 2 Straight Gray PVC 22 RST 4-RKT 4-646/2M
4 2 Male Straight / Female Right Angle Gray PVC 22 RST 4-RKWT 4-646/2M
4 2 Male Straight / Female Right Angle Black PUR 22 RST 4-RKWT 4-225/2M
4 5 Straight Gray PVC 22 RST 4-RKT 4-646/5M
4 5 Straight Black PUR 22 RST 4-RKT 4-225/5M
4 5 Male Straight / Female Right Angle Gray PVC 22 RST 4-RKWT 4-646/5M
4 5 Male Straight / Female Right Angle Black PUR 22 RST 4-RKWT 4-225/5M
5 1 Straight Gray PVC 22 RST 5-RKT 5-647/1M
5 2 Straight Gray PVC 22 RST 5-RKT 5-647/2M
5 5 Straight Gray PVC 22 RST 5-RKT 5-647/5M
5 10 Straight Gray PVC 22 RST 5-RKT 5-647/10M
8 1 Straight Gray PVC 24 RST 8-RKT 8-661/1M
8 2 Straight Gray PVC 24 RST 8-RKT 8-661/2M
8 5 Straight Gray PVC 24 RST 8-RKT 8-661/5M
